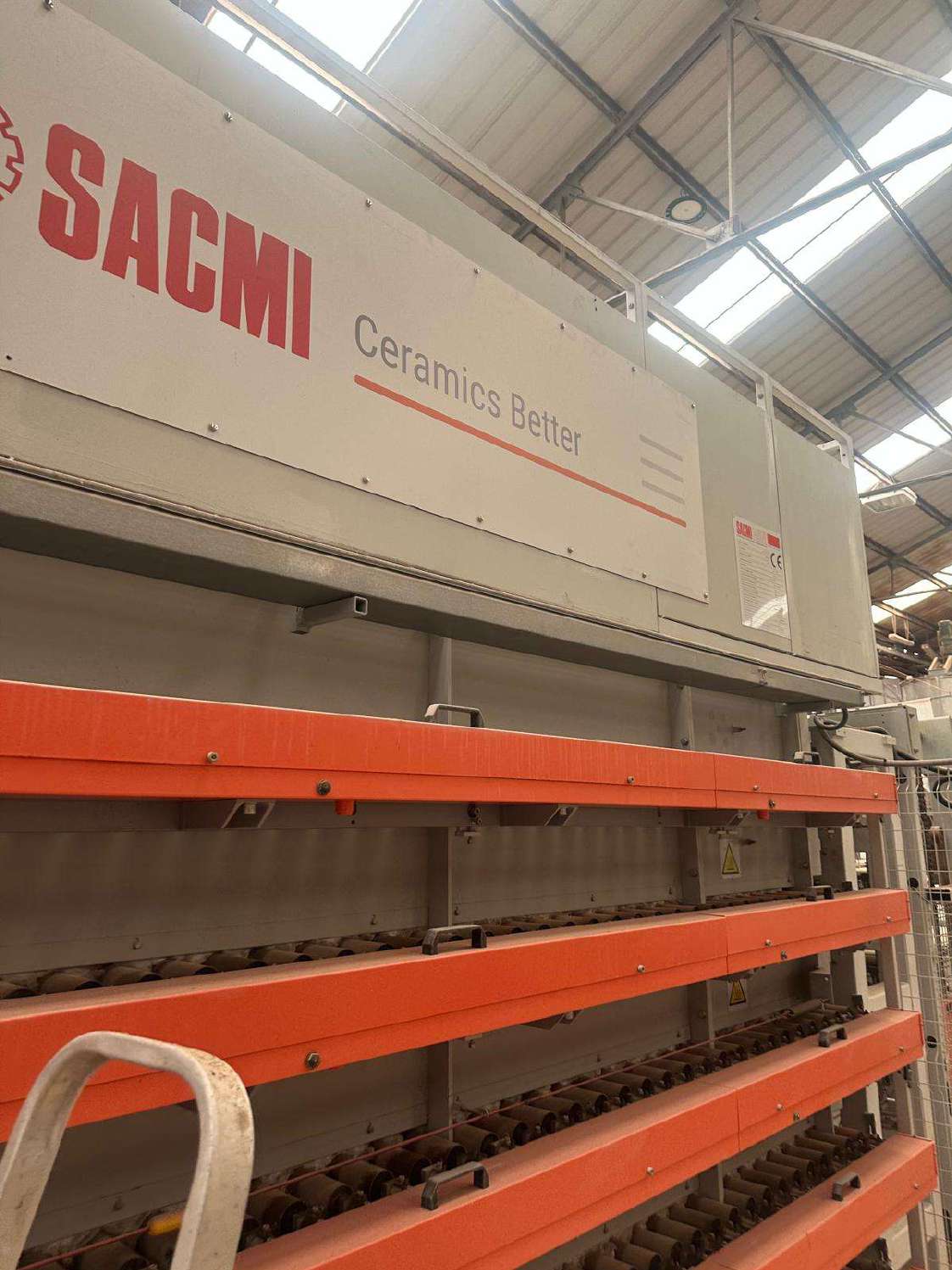

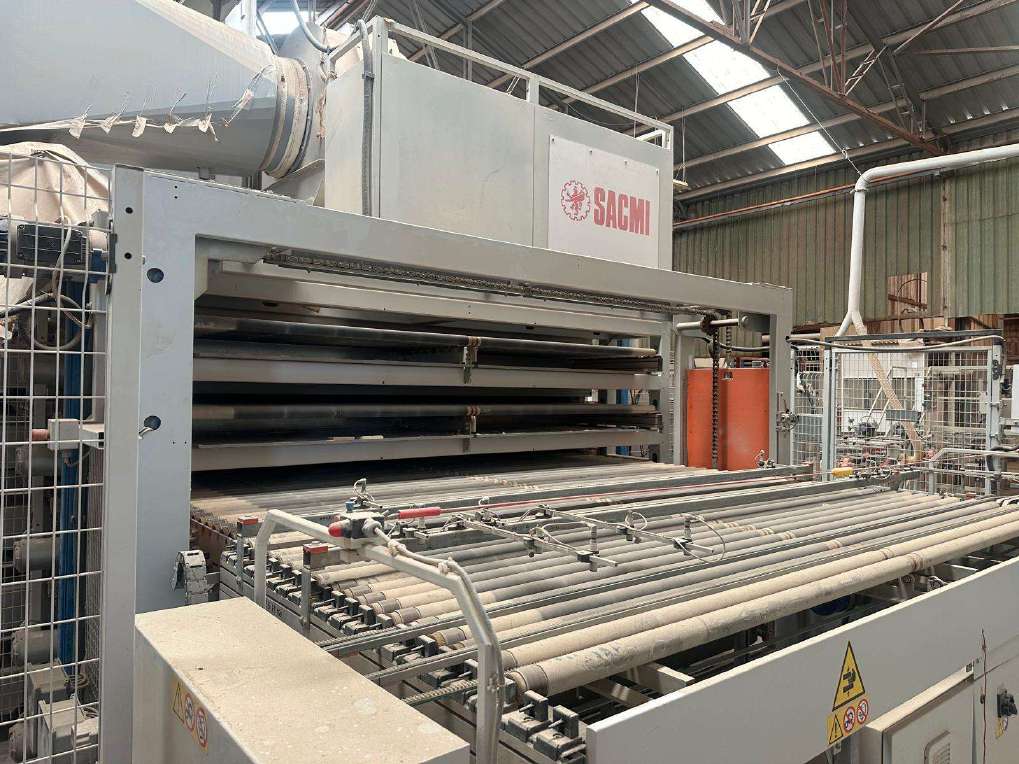

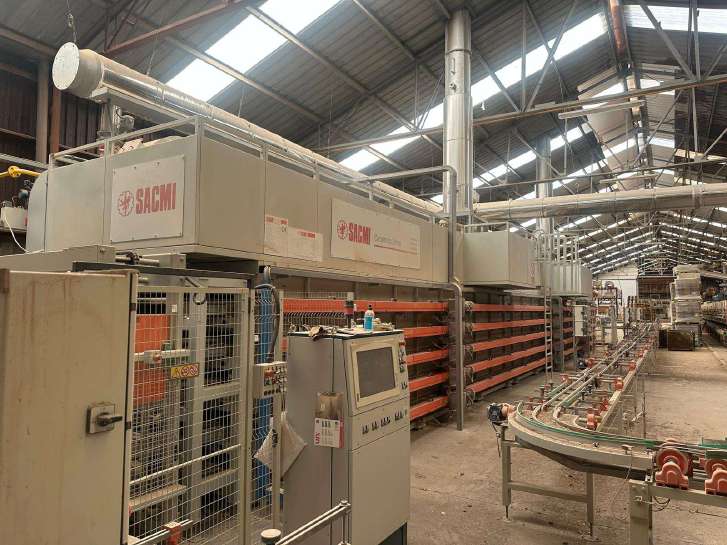

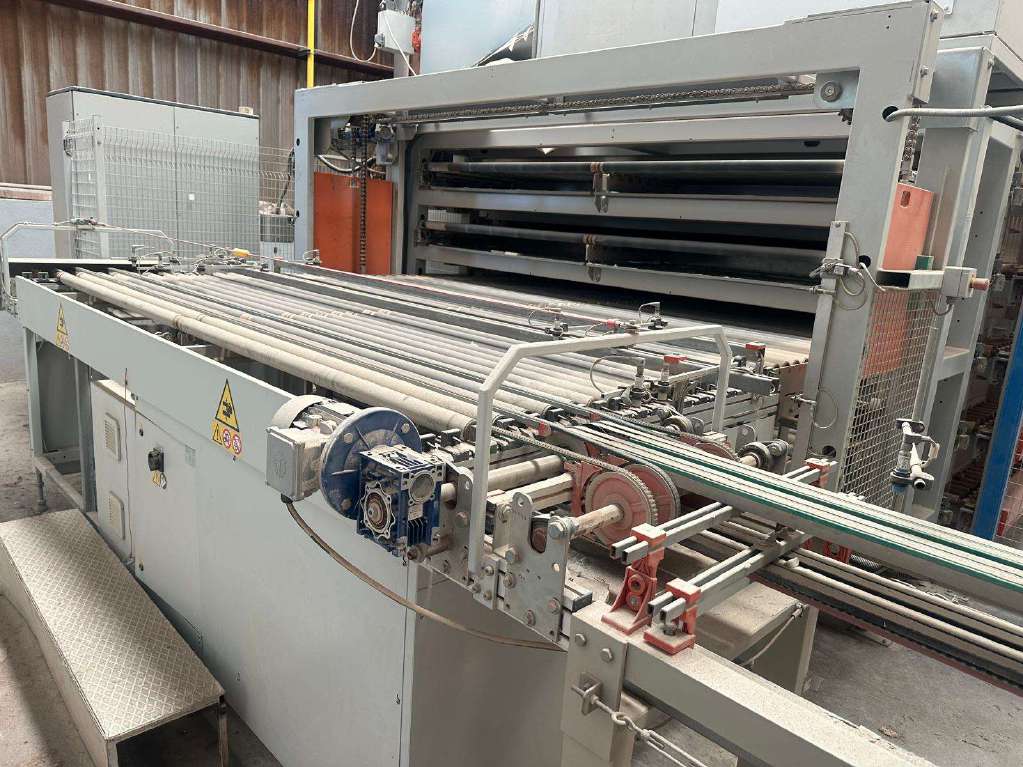

Technical Description – SACMI Horizontal Dryer ECP‑285/22,6 (BESTILE‑7)
⚙️ Main Features

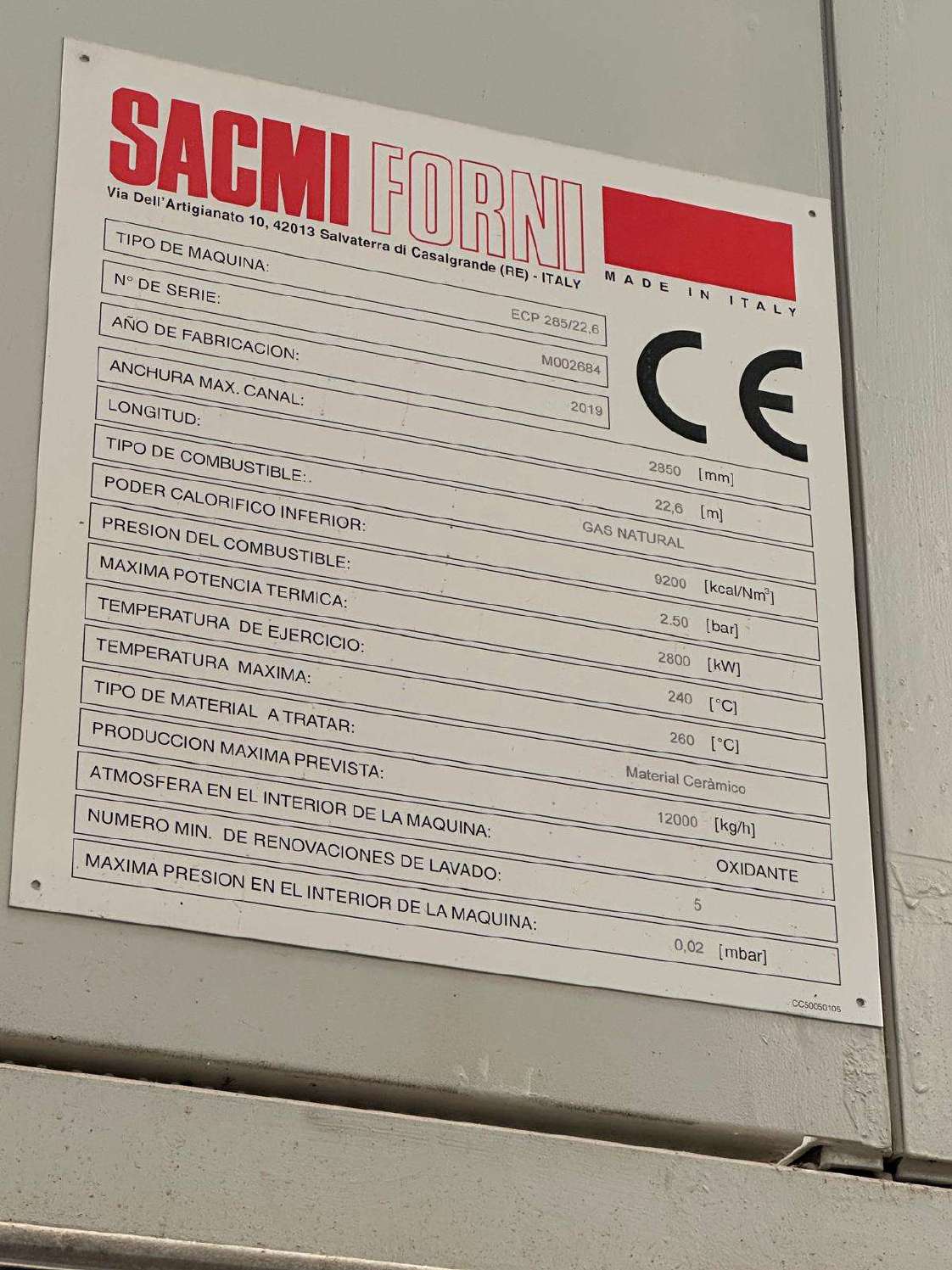

- Brand: SACMI Forni S.p.A. (Italy)
- Model: ECP‑285/22,6
- Serial number: M002684
- Year of manufacture: 2019

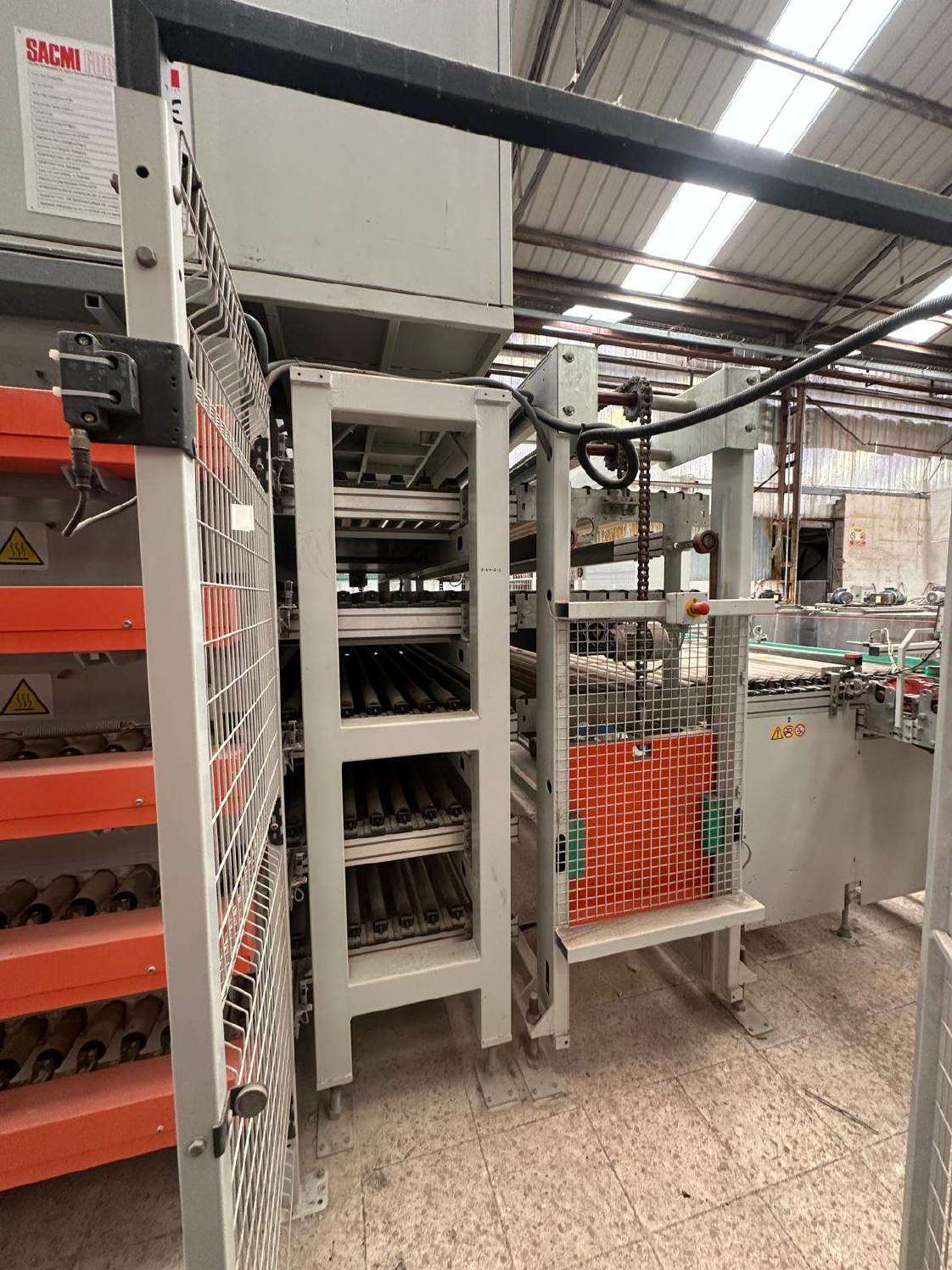

- Layers available: 5
Structural Dimensions

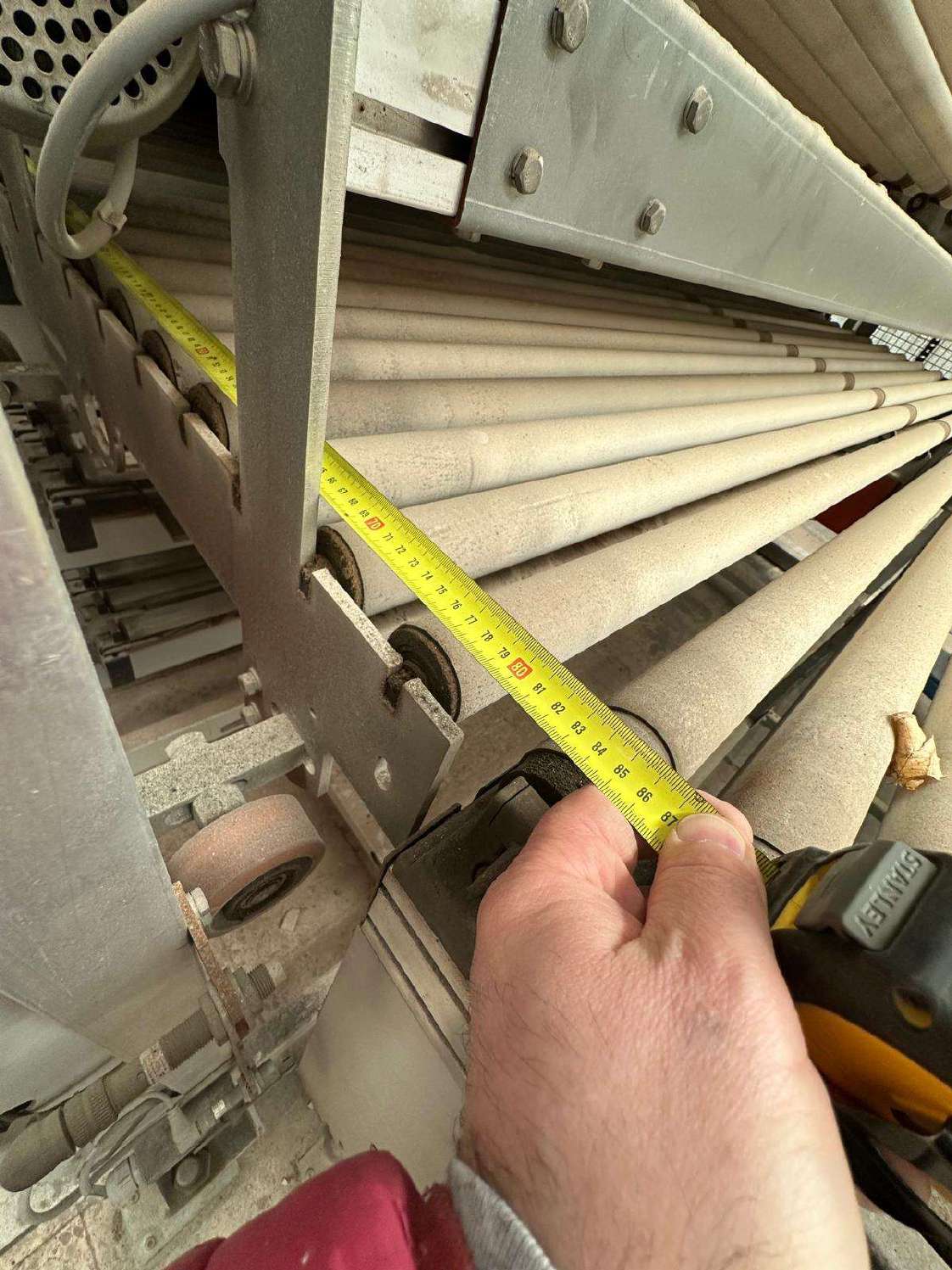

- Maximum channel width: 2,850 mm
- Total length: 22.6 m (5 layers)

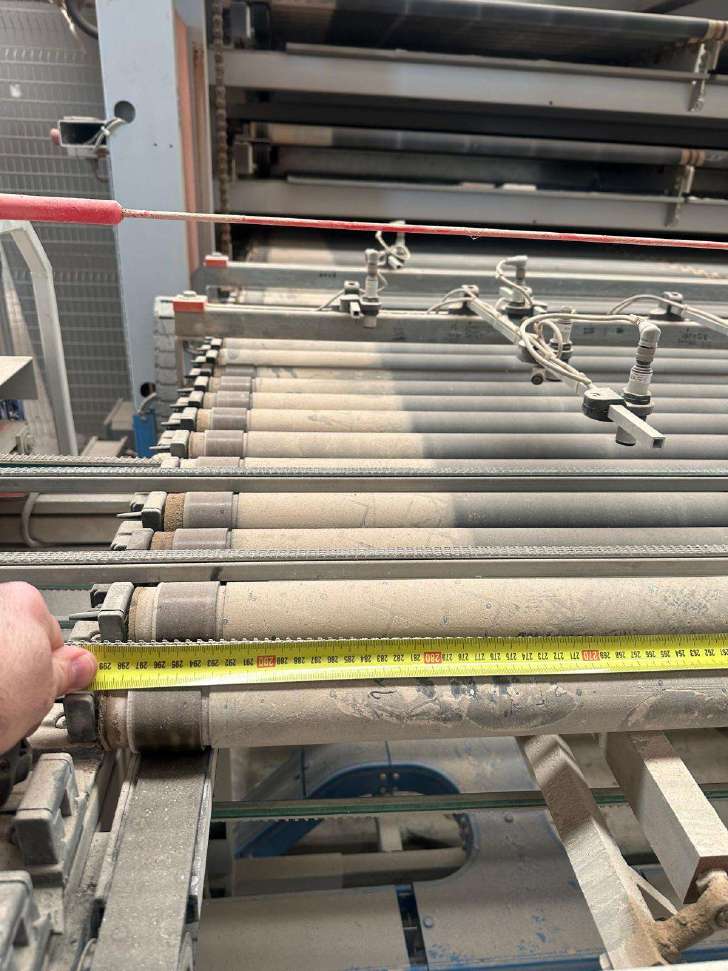

- Roller pitch: not specified
- Roller diameter: not specified

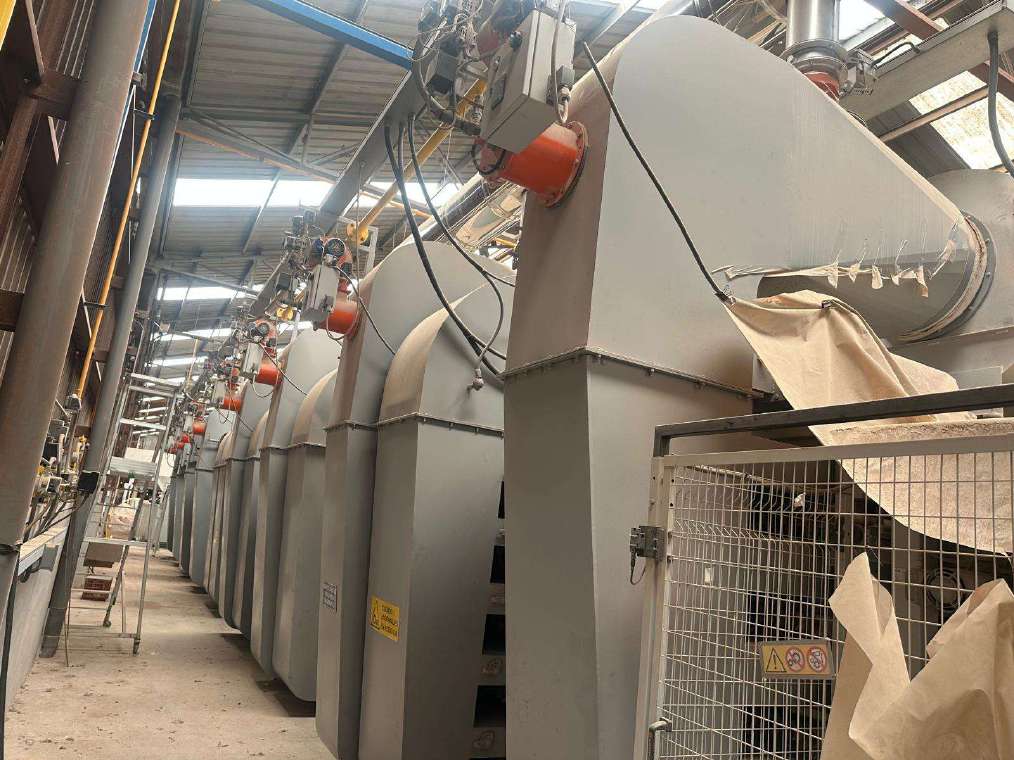

Thermal & Gas Specifications
- Fuel type: Natural gas
- Lower calorific value: 9,200 kcal/Nm³
- Fuel pressure: 2.5 bar
- Maximum thermal power: 2,800 kW
- Operating temperature: 240 °C
- Maximum admissible temperature: 260 °C
- Atmosphere inside machine: Oxidizing

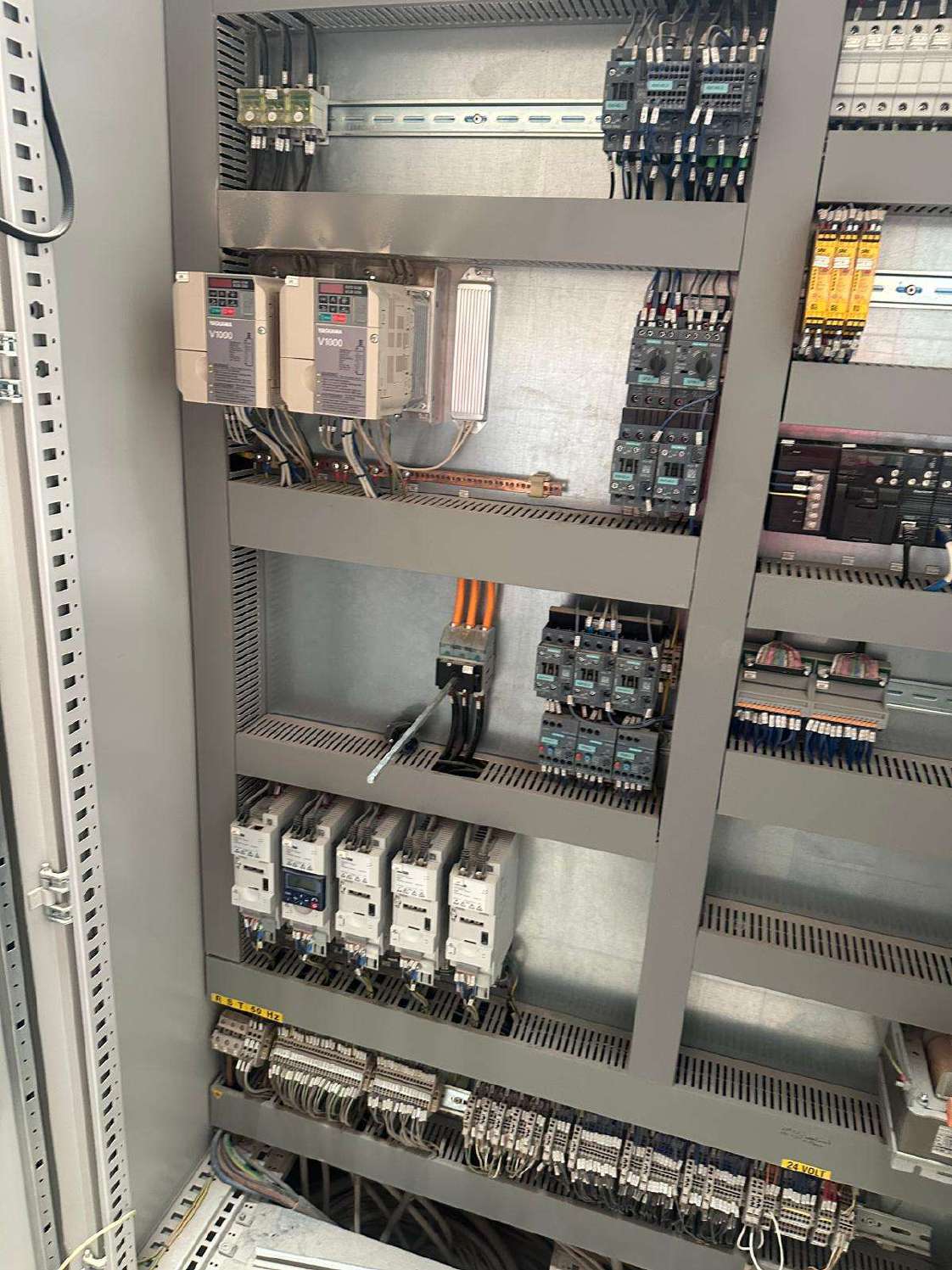

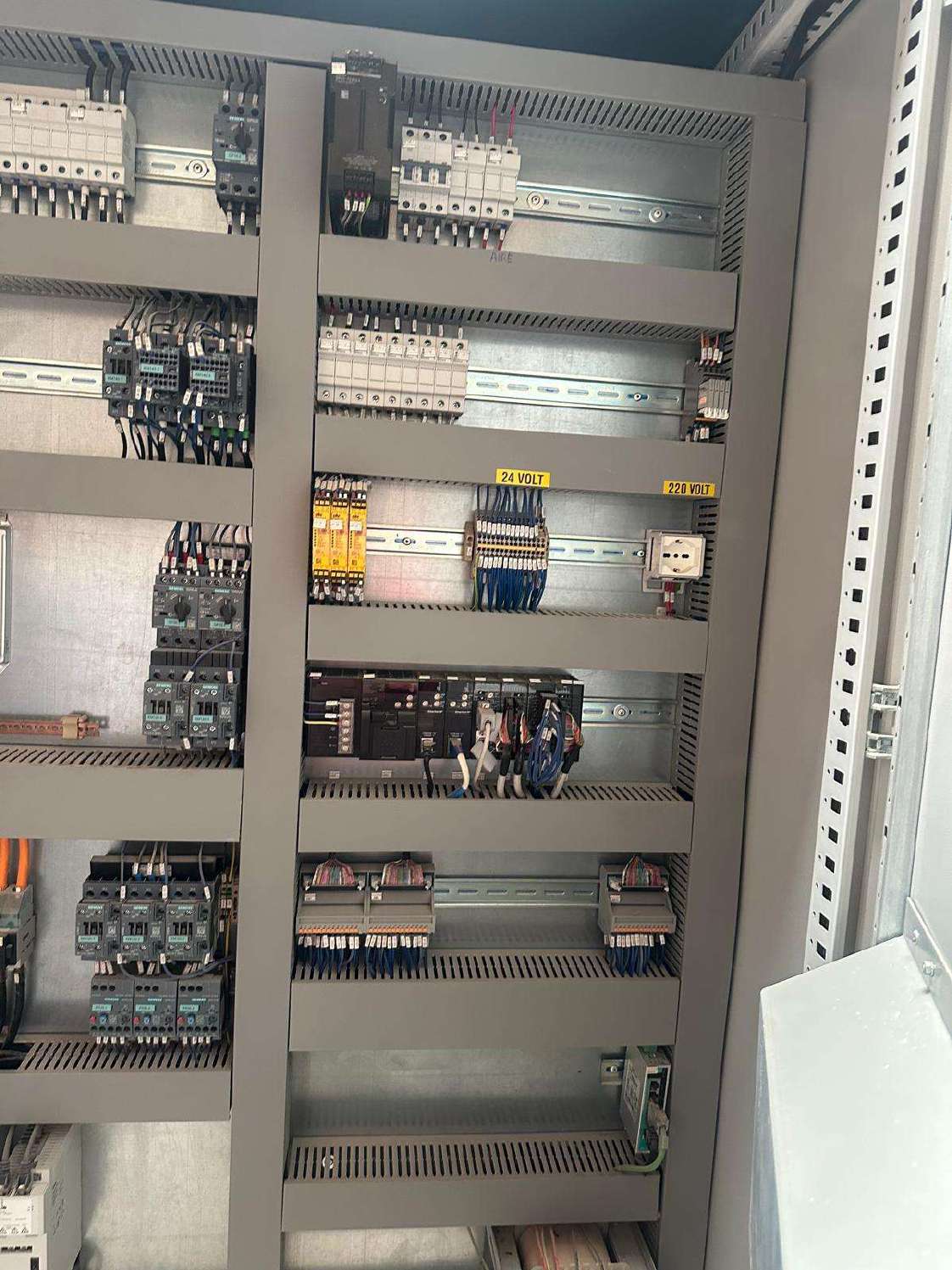

⚡ Electrical & Production Specifications
- Supply voltage: 380 V (3 phases)
- Auxiliary voltage: 24 V DC
- Frequency: 50/60 Hz
- Installed electrical power: 14.15 kW
- Nominal current: 28.3 A
- Breaker current rating: 63 A
- Cable section: 4G25 mm²
- Ambient temperature range: 10 °C
- Maximum production capacity: 12,000 kg/h of ceramic material
- Minimum wash renewals: 5 cycles
- Maximum internal pressure: 0.02 mbar
Applications
- Designed for ceramic drying and pre‑firing processes.
- Suitable for large‑scale industrial ceramic production lines.
- Optimized, ensuring high throughput and consistent quality.
- Integrated safety protocols: protections and devices must not be removed during operation.
Manufacturer
- SACMI Forni S.p.A.
- Headquarters: Salvaterra di Casalgrande (RE), Italy
