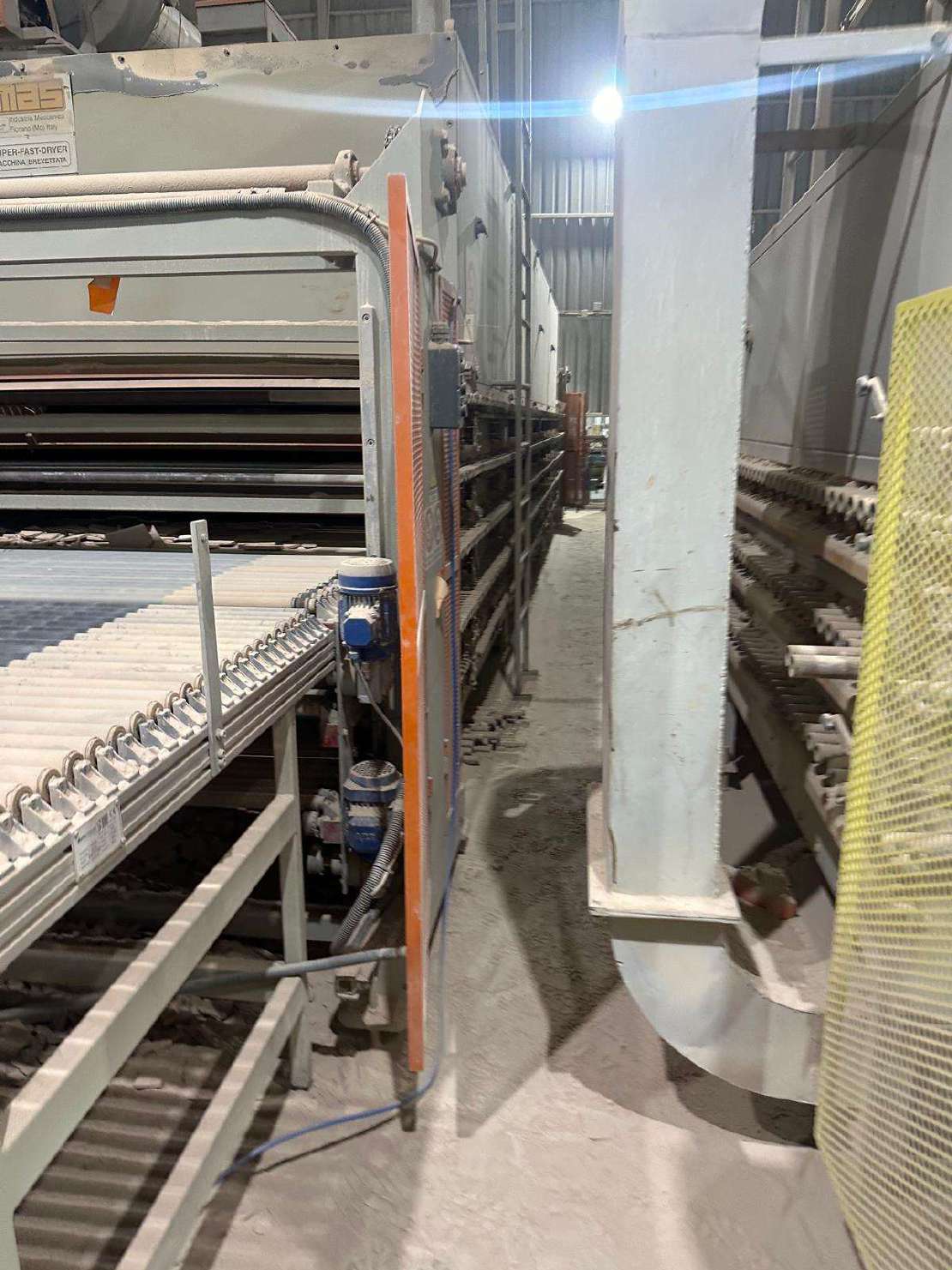

IMAS Horizontal Dryer SFD 4/5P

Descripción

Technical Description – IMAS Horizontal Dryer SFD 4/5P
⚙️ Main Features

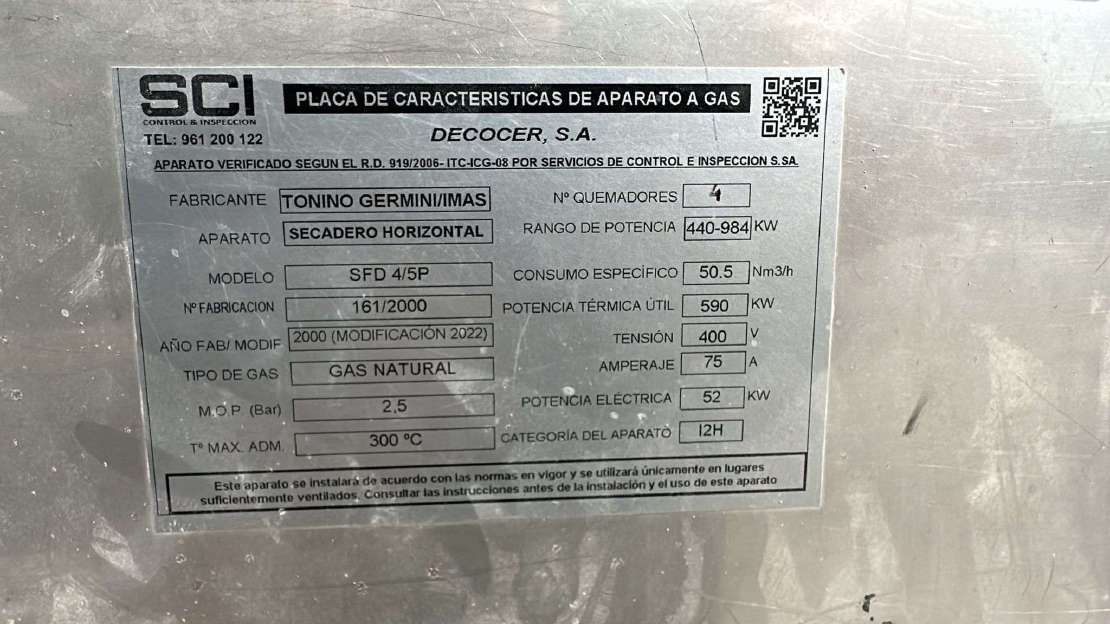

• Brand: IMAS – Industria Meccanica (Italy)
• Model: SFD 4/5P
• Serial number: 161/2000
• Year of manufacture: 2000 (overhauled in 2022)
• Plans available: 5

Structural Dimensions

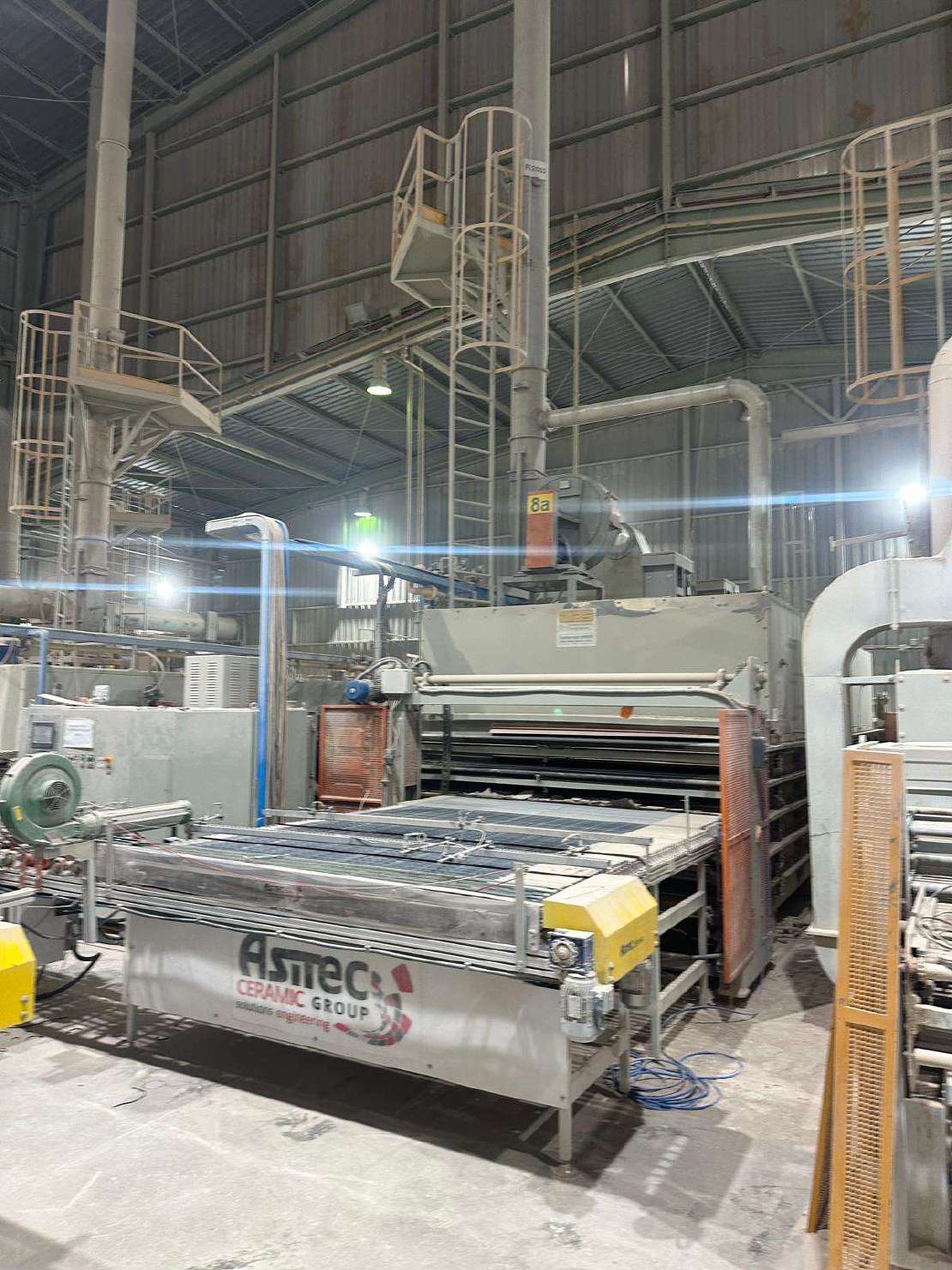

• Total length: 14,000 mm (including entry and exit machines)
• Format capacity: up to 100 × 100 mm tiles/slabs
• Dryer mouth width: 2,350 mm

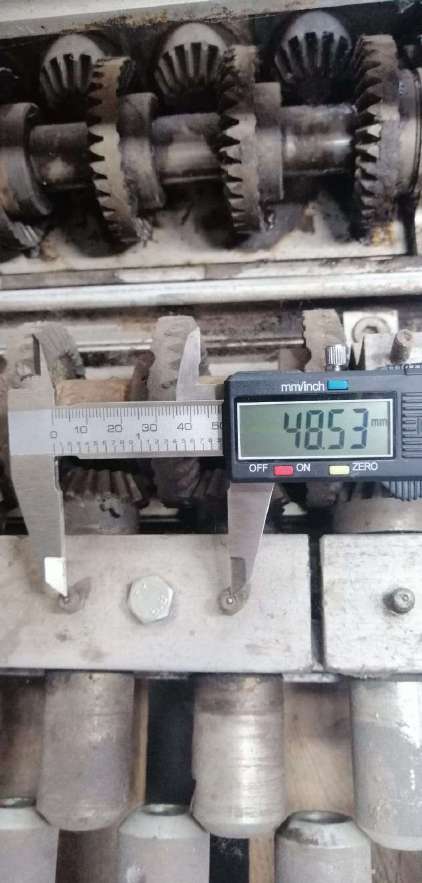

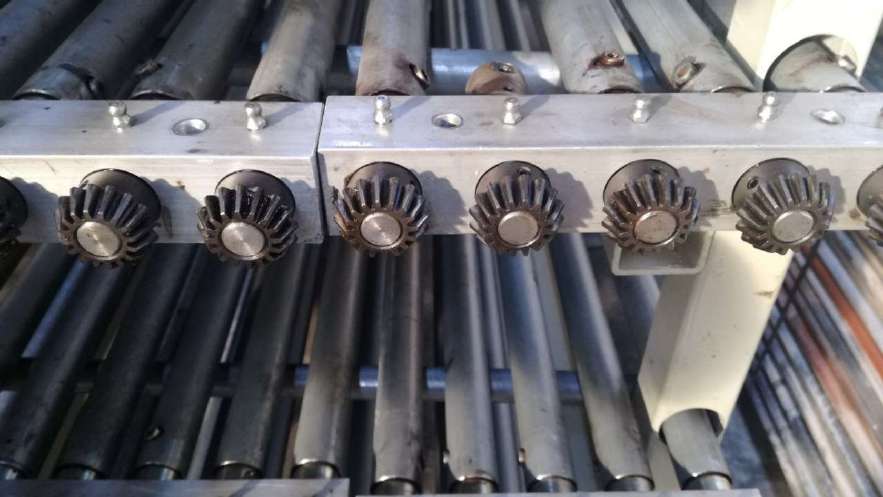

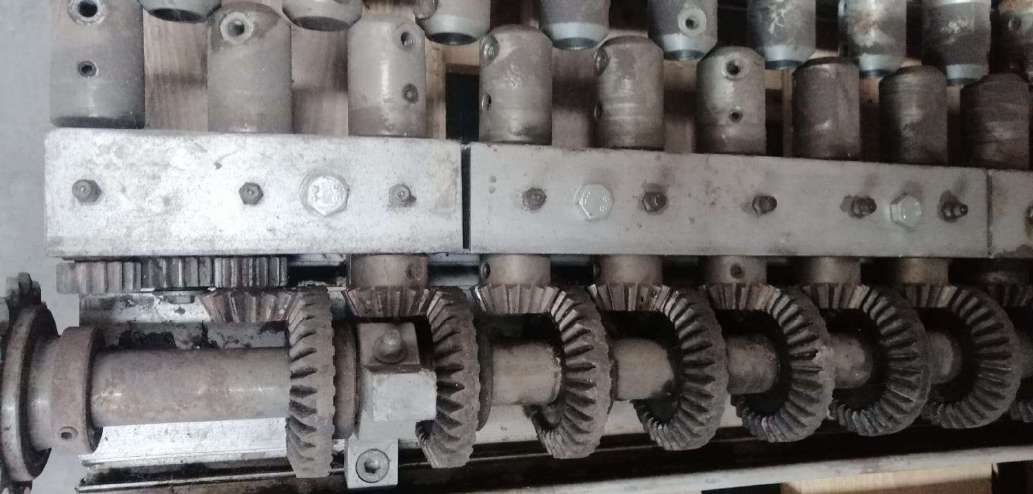

• Roller pitch: 48.5 mm

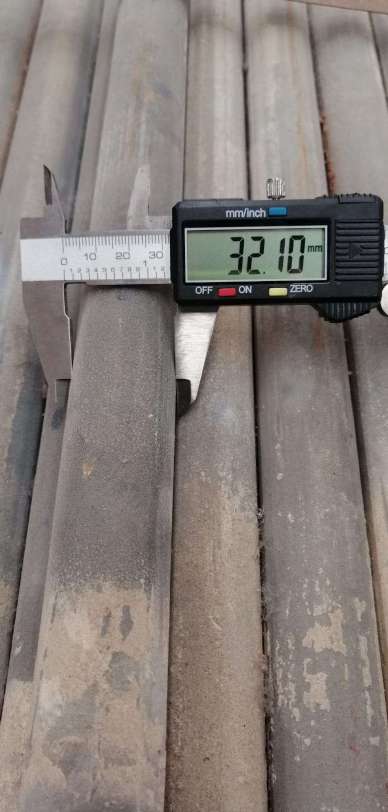

• Roller diameter: 32 mm

Thermal & Gas Specifications

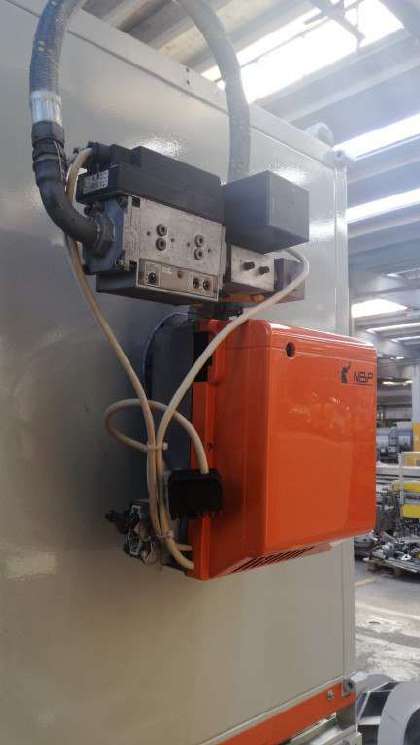

• Number of burners: 14
• Thermal power range: 440–984 kW
• Useful thermal power: 590 kW
• Specific gas consumption: 50.5 Nm³/h
• Gas type: Natural gas
• Maximum operating pressure (M.O.P.): 2.5 bar
• Category: 12H
• Maximum admissible temperature: 300 °C

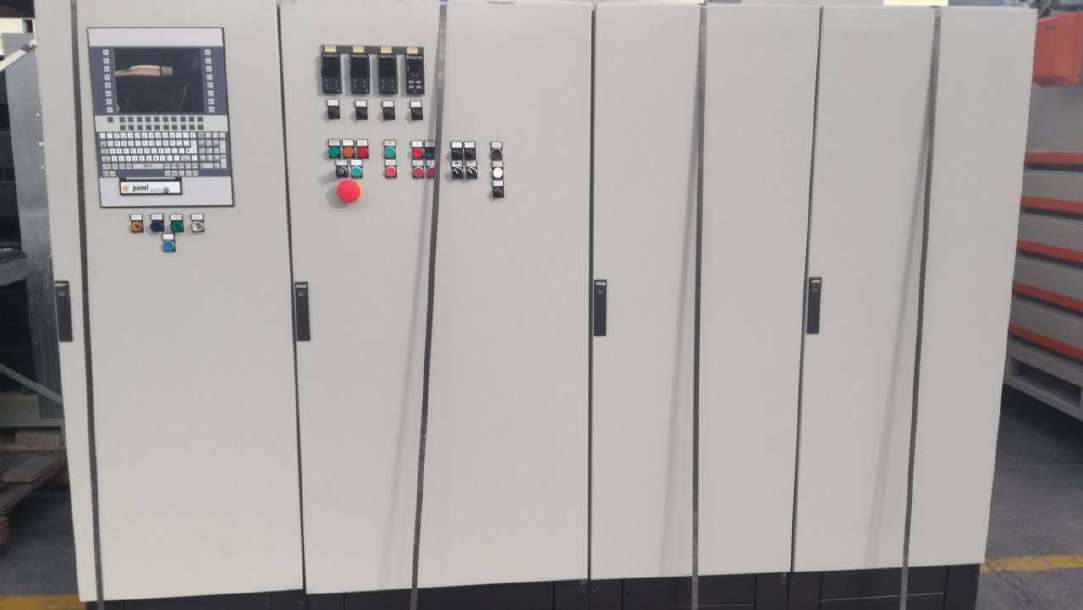

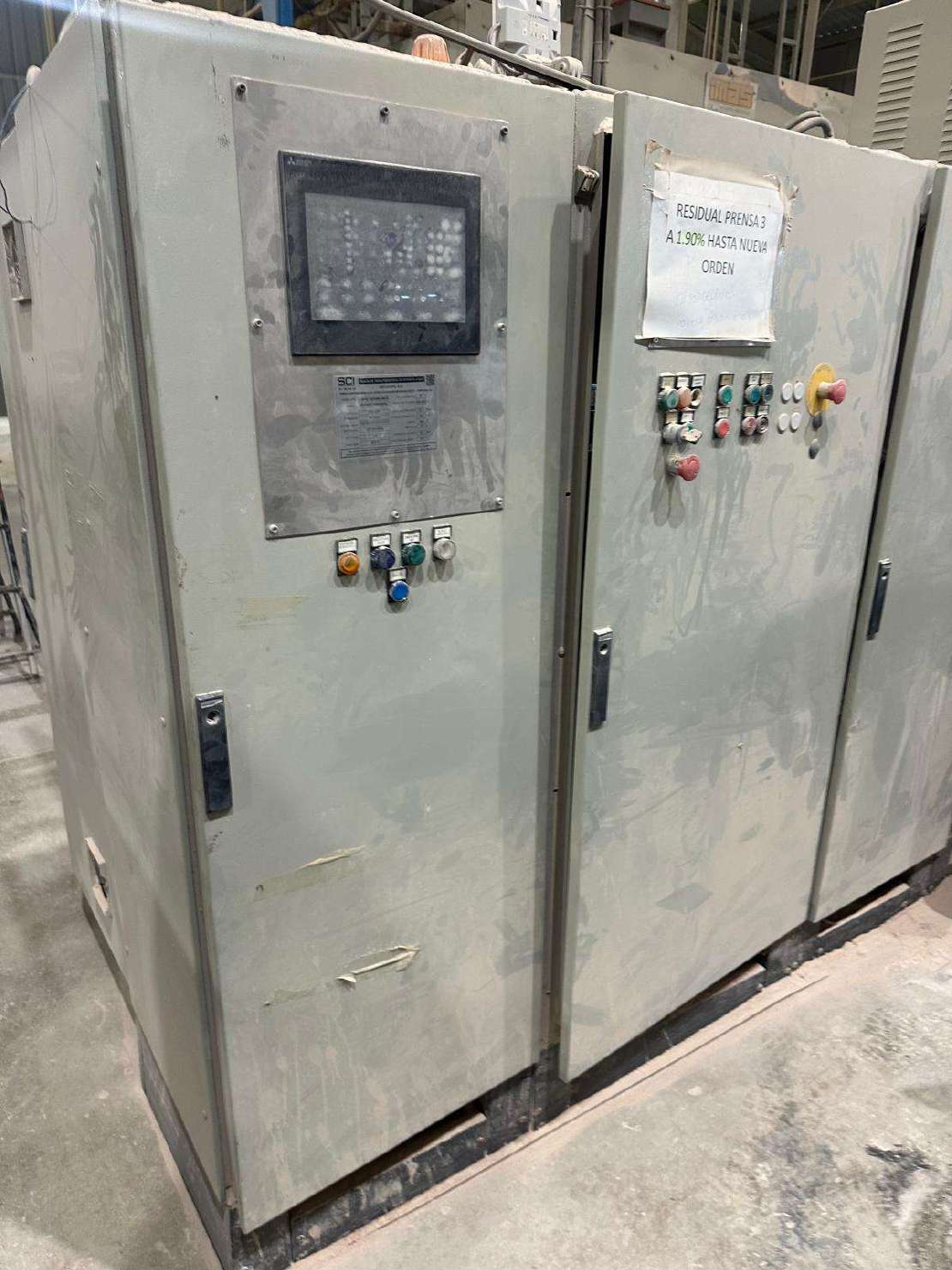

⚡ Electrical Specifications
• Supply voltage: 400 V
• Installed electrical power: 52 kW
• Nominal current: 75 A

Applications

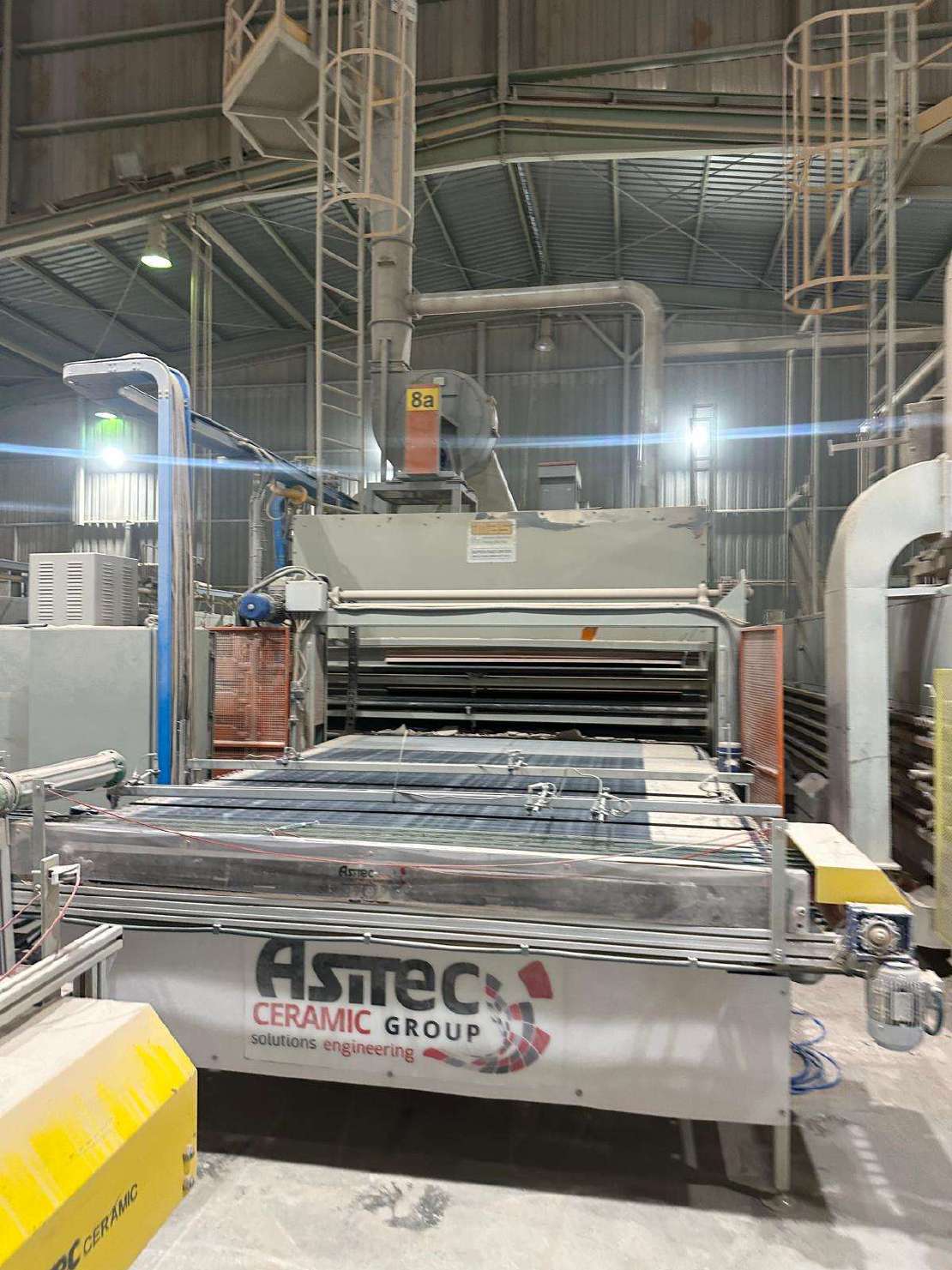

• Designed for ceramic drying processes in industrial production lines.

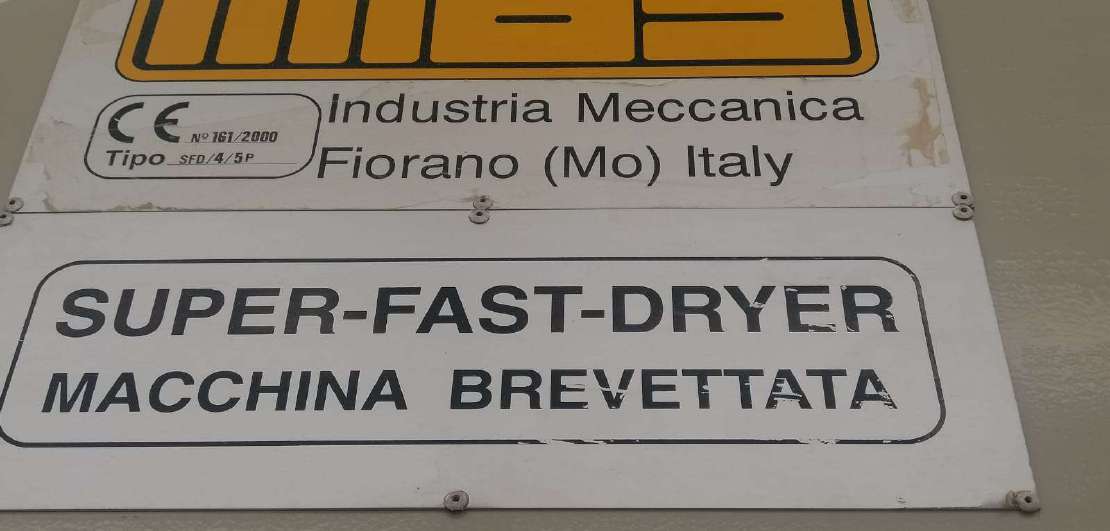

• Optimized for fast drying cycles (“Super-Fast-Dryer” patented system).
• Suitable for continuous operation with large-format ceramic tiles.
• Integrated safety and inspection systems compliant with R.D. 919/2006 – ITC-ICG-08.

Manufacturer
• IMAS – Industria Meccanica
• Headquarters: Fiorano Modenese (MO), Italy
