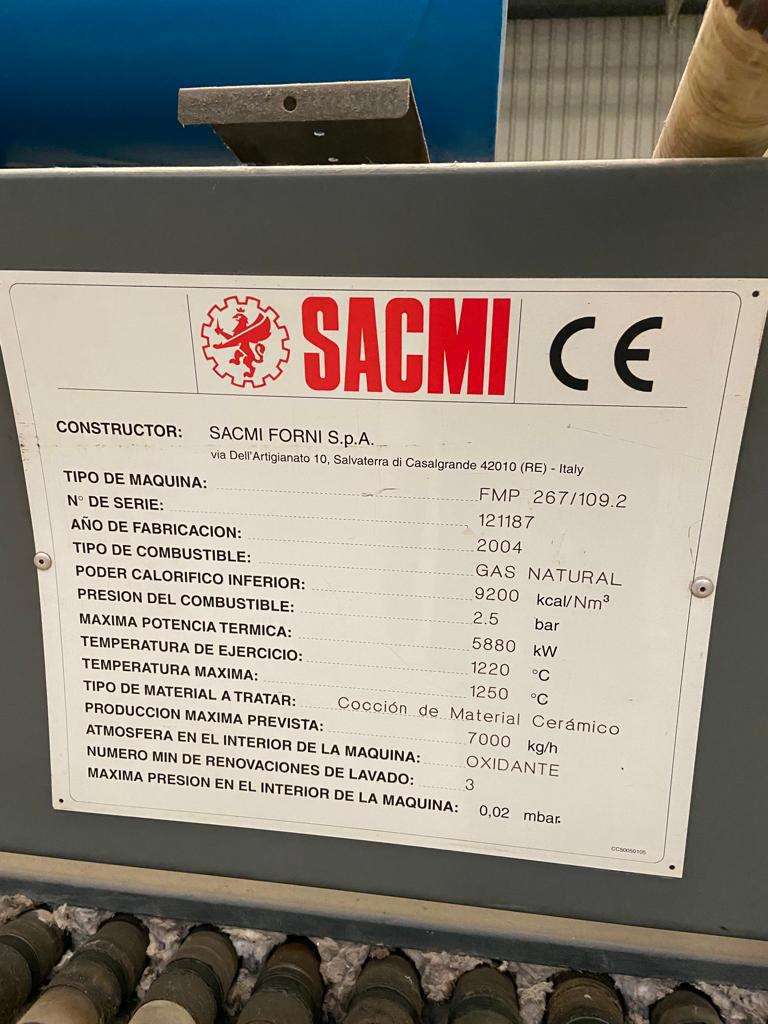

Thermal Characteristics

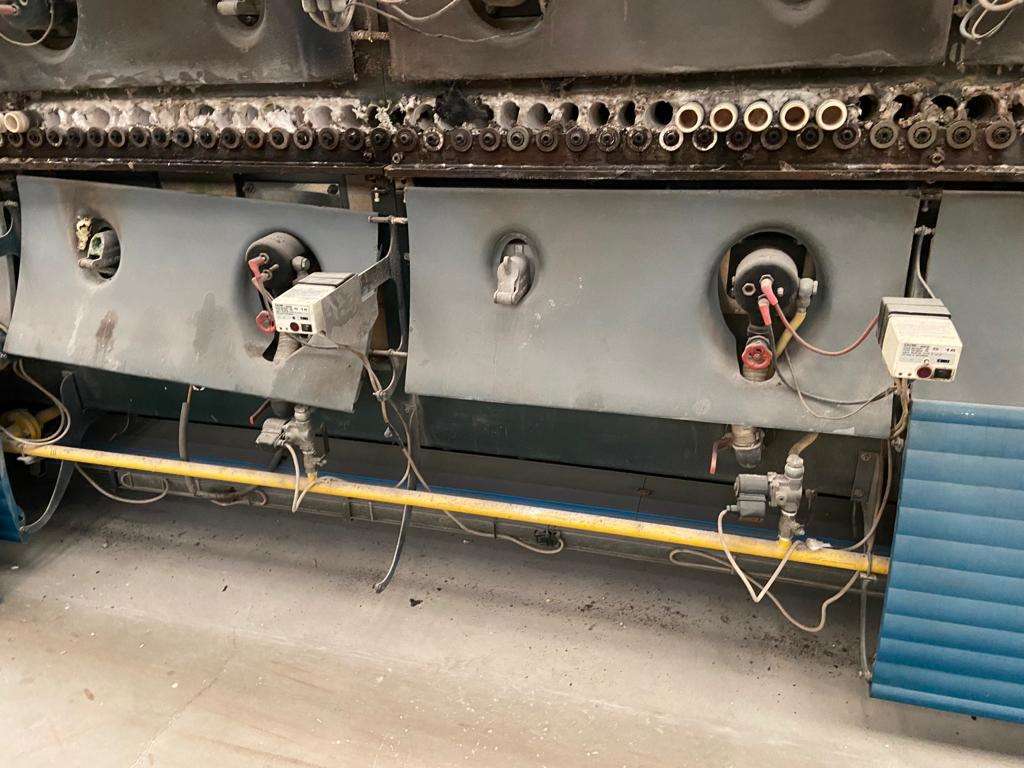

• Fuel type: Natural gas
• Lower heating value: 9,200 kcal/Nm³
• Gas pressure: 2.5 bar
• Maximum thermal power: 5,880 kW
• Operating temperature: 1,220 °C
• Maximum temperature: 1,250 °C
Production & Process
• Material processed: Ceramic material (firing)
• Maximum production capacity: 7,000 kg/h
• Internal atmosphere: Oxidizing
• Minimum air‑change cycles: 3
• Maximum internal pressure: 0.02 mbar

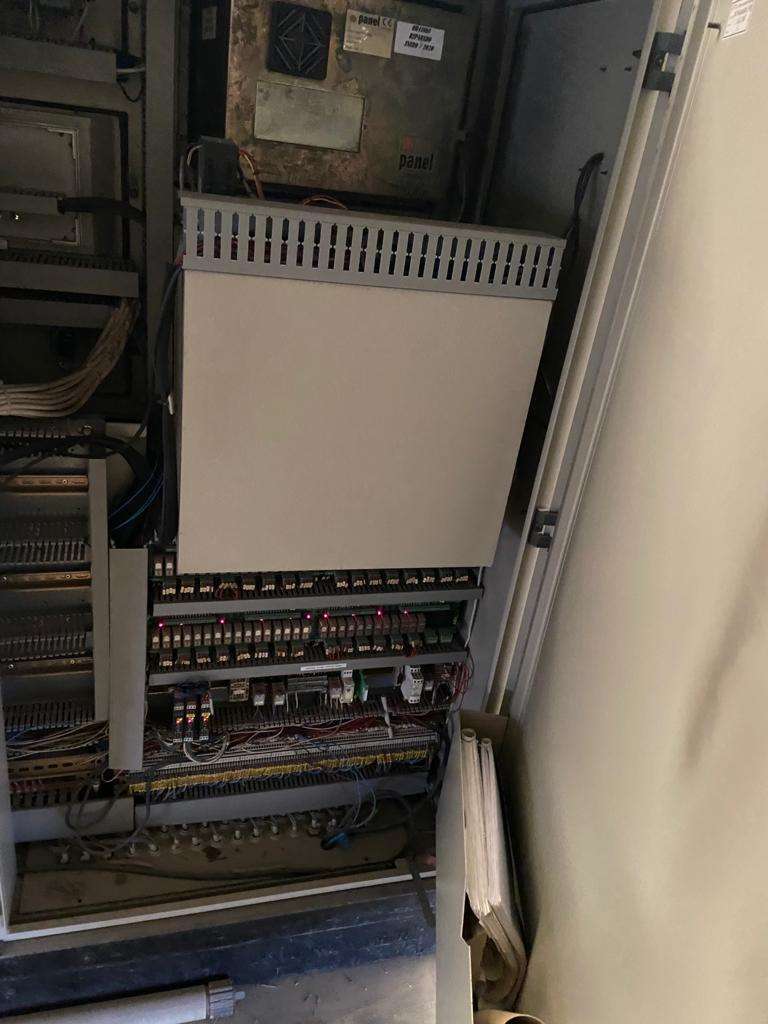

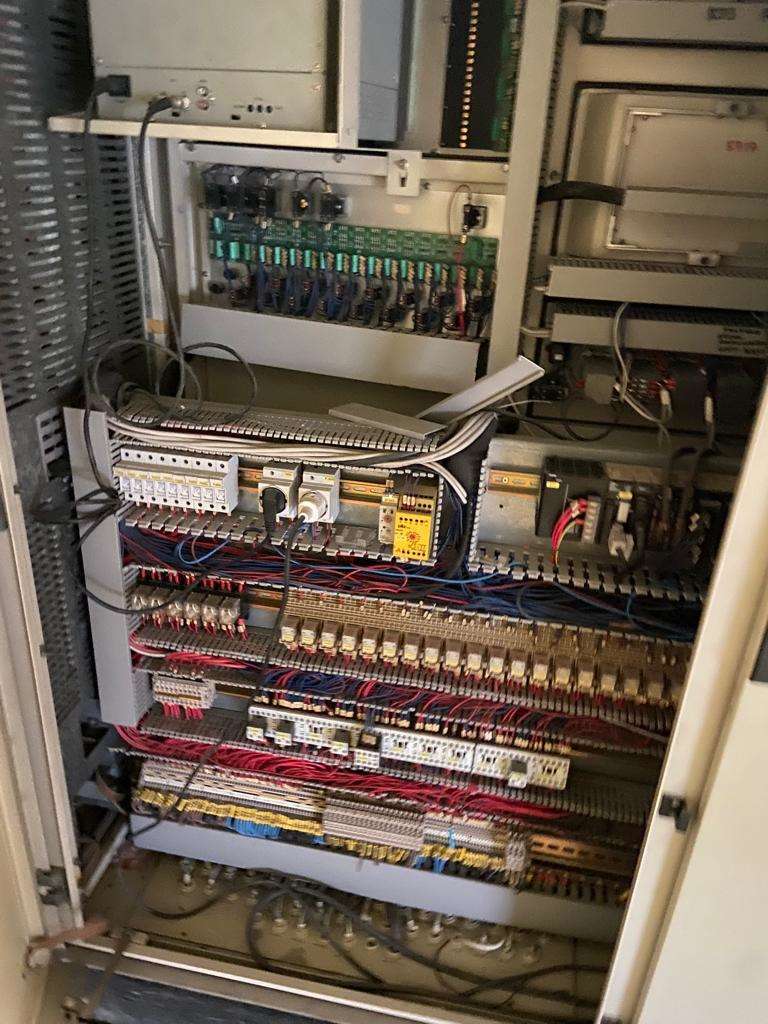

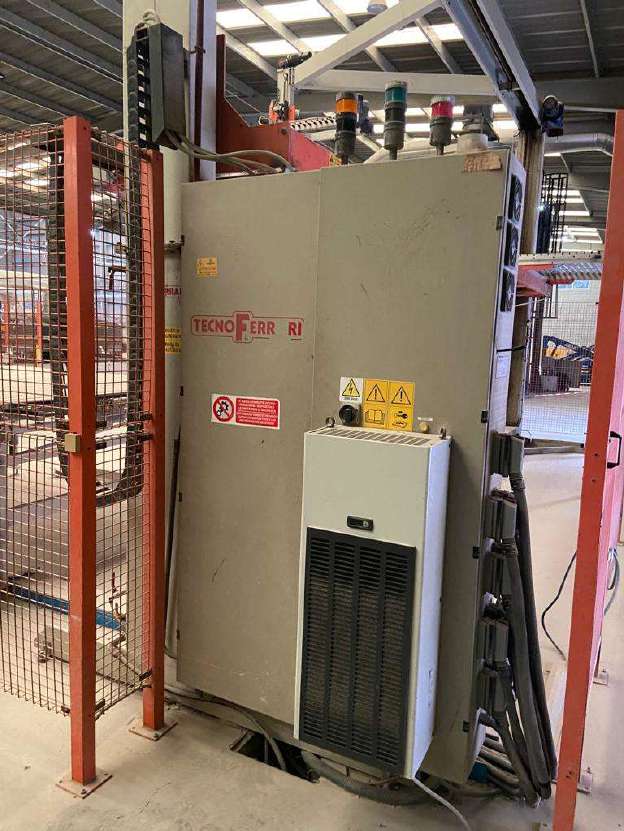

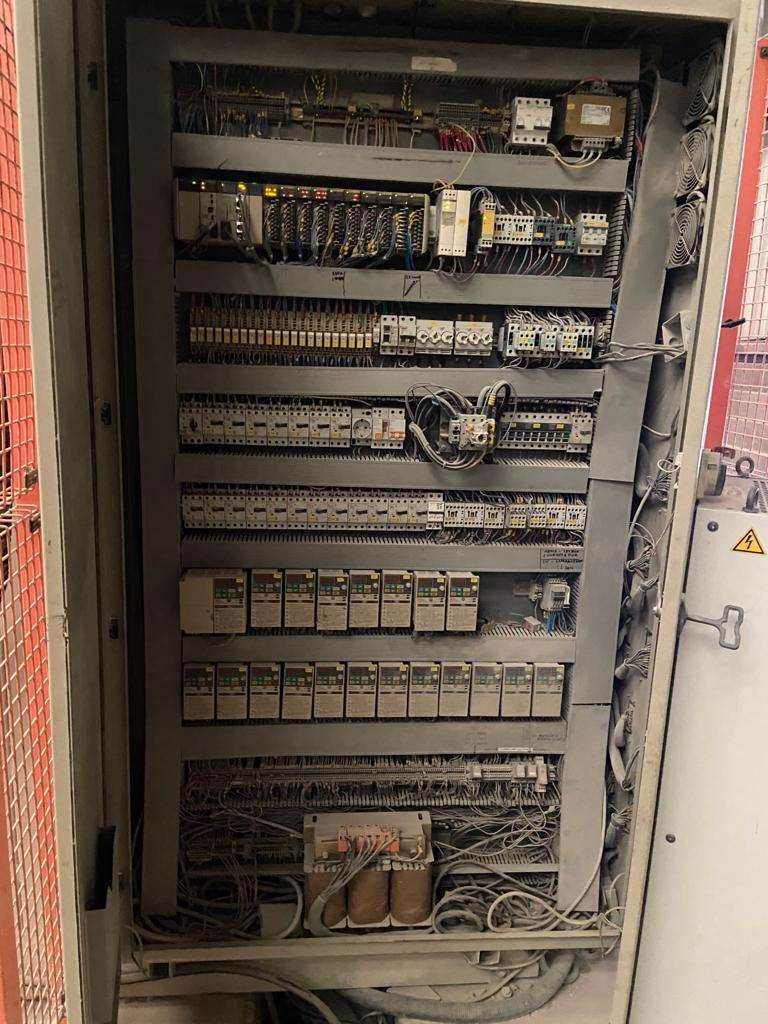

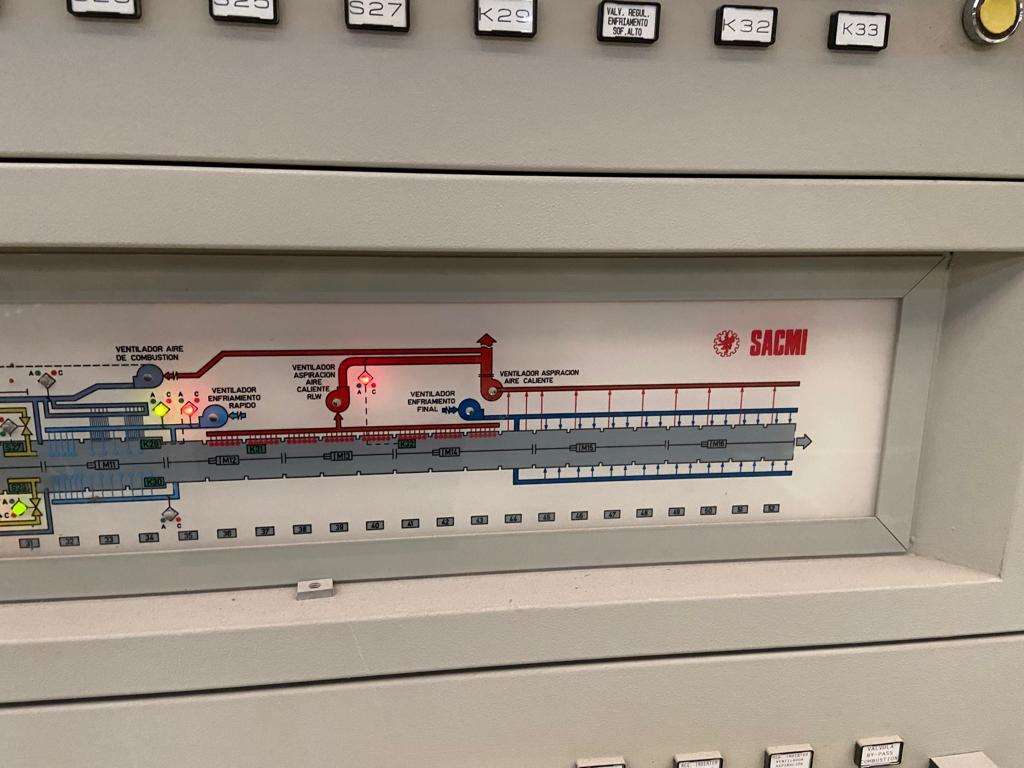

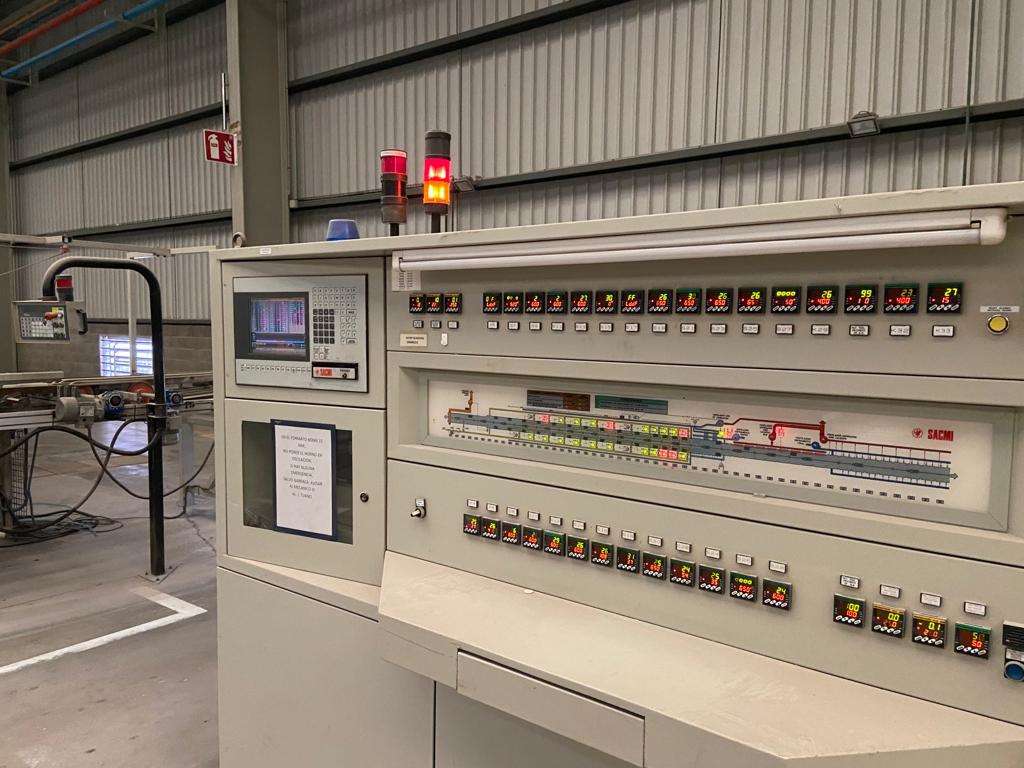

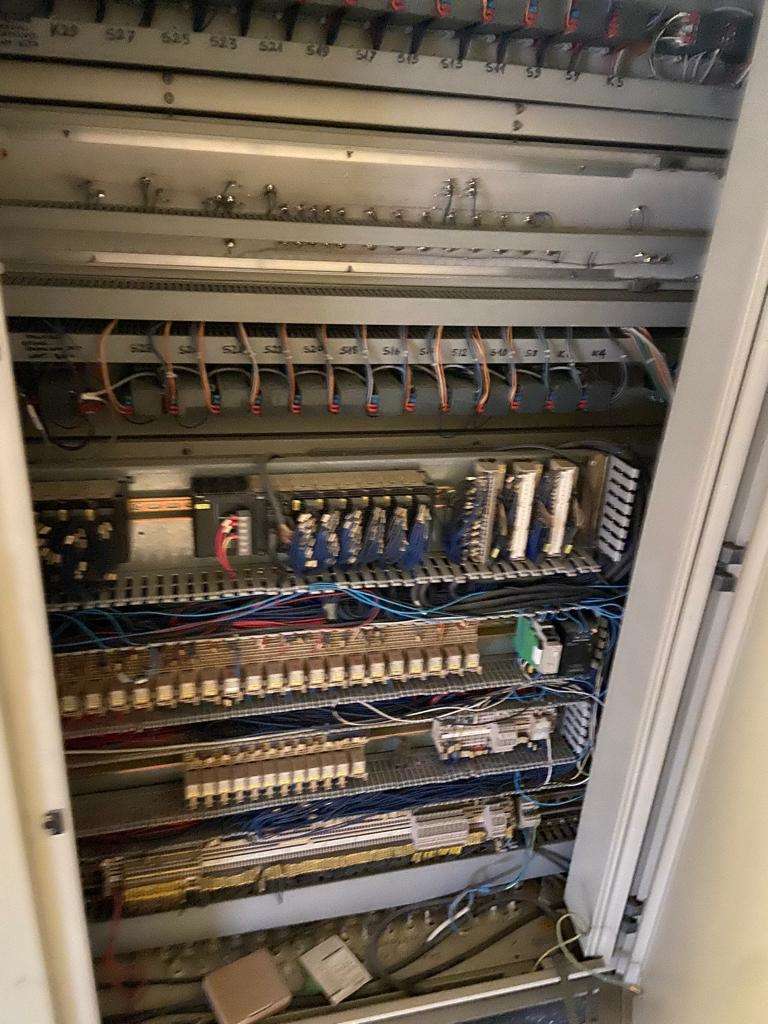

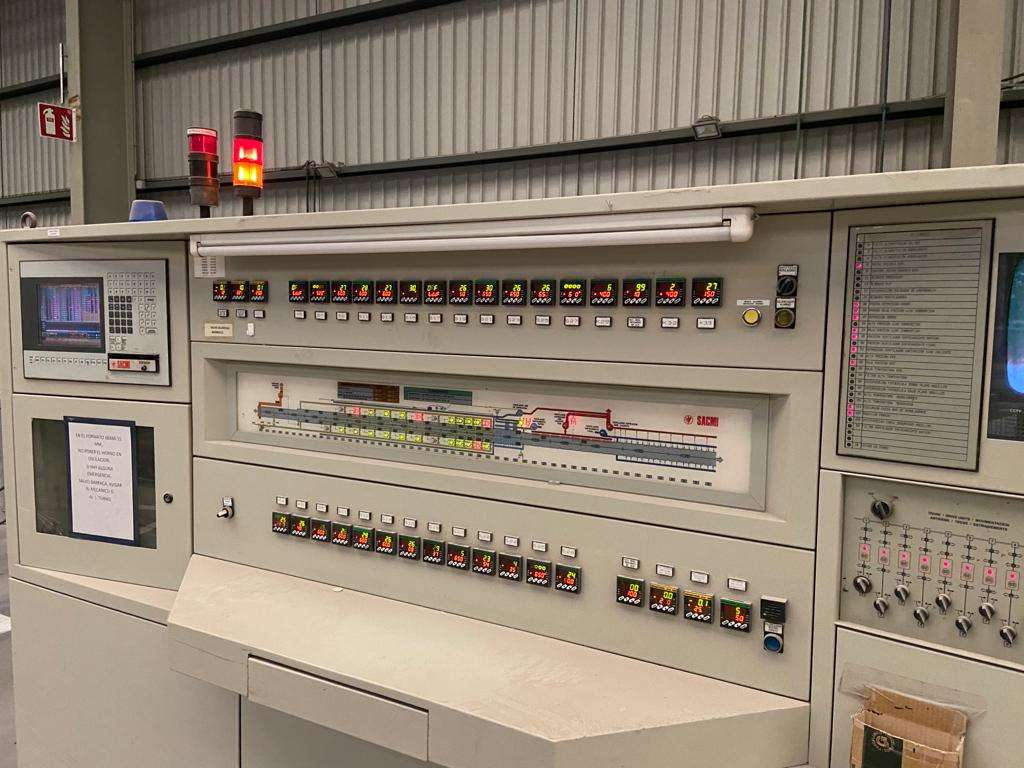

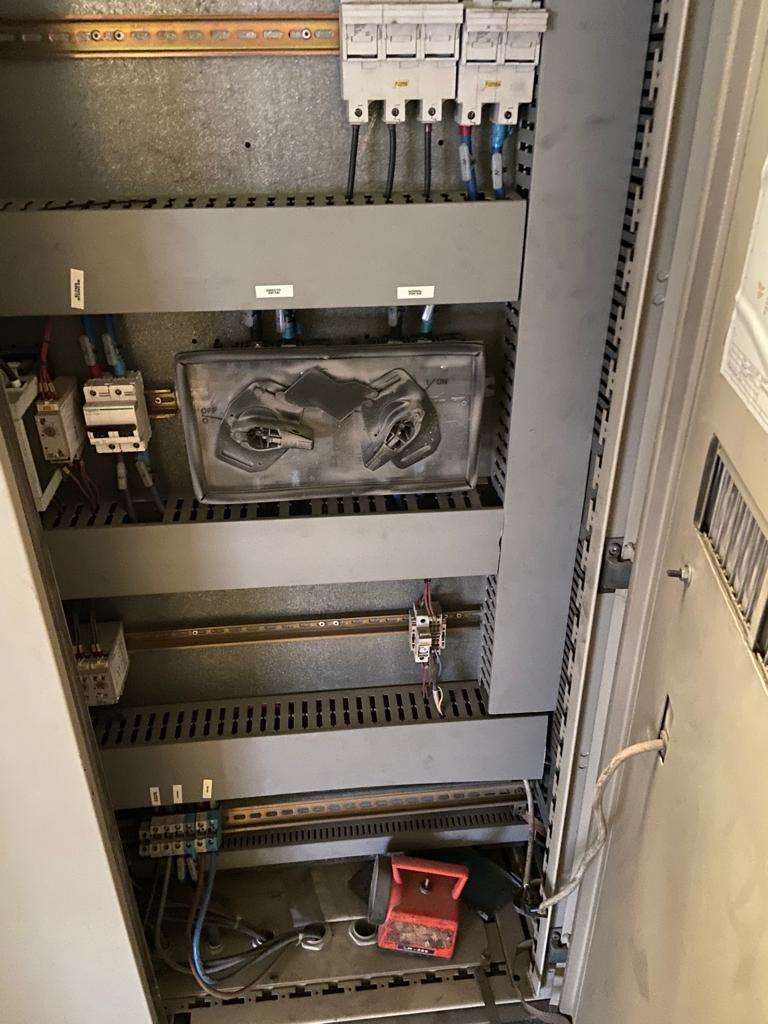

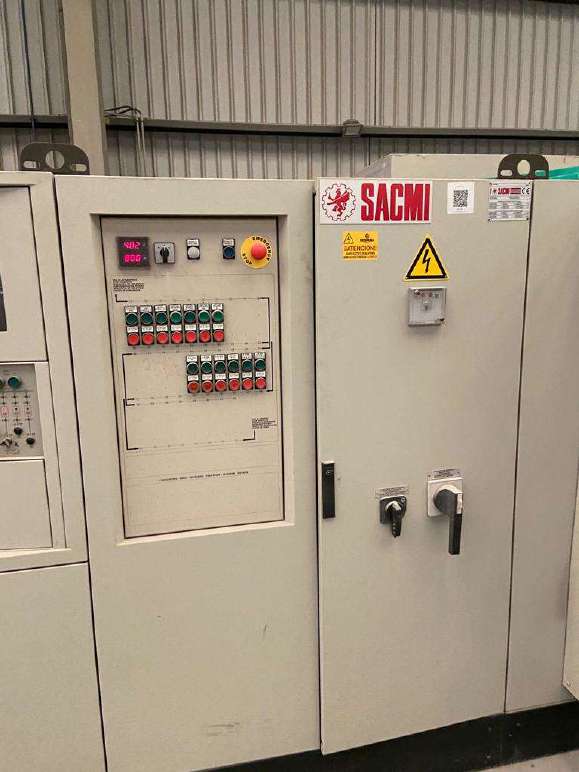

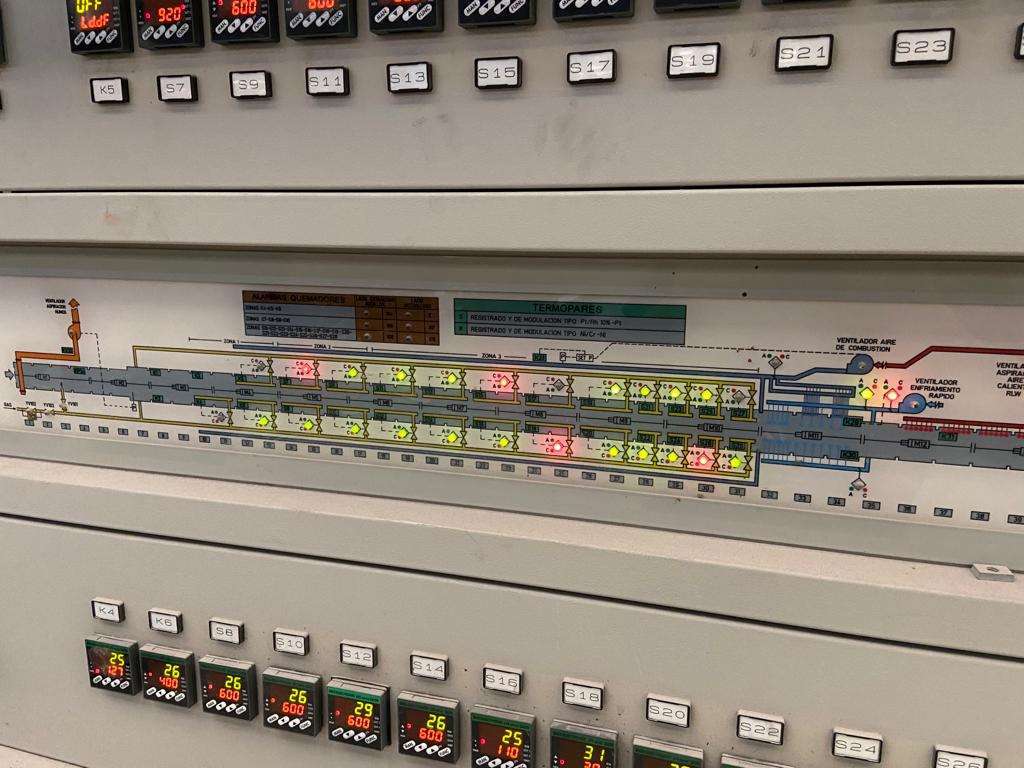

⚡ Electrical Panel – General Data

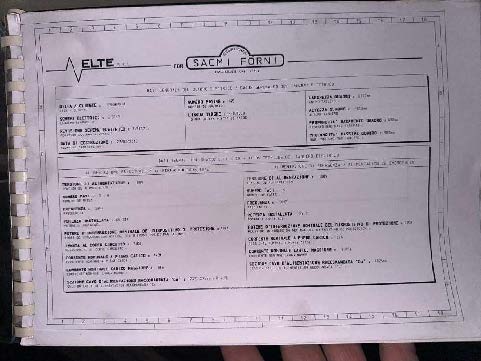

(Extracted from the electrical documentation section)

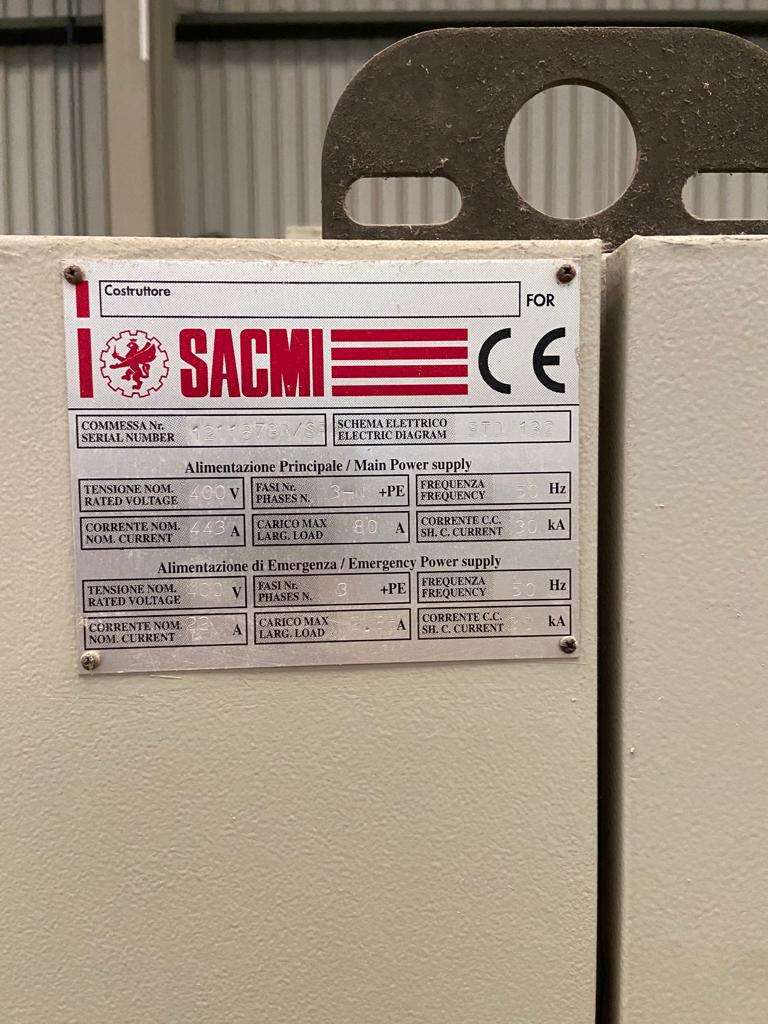

Main Power Supply
• Rated voltage: 400 V
• Phases: 3 + PE
• Frequency: 50 Hz
• Installed power: 221 kW
• Nominal current: 443 A
• Short‑circuit withstand capacity: 30 kA
• Recommended cable section (Cu): 175 mm²
Emergency Power Supply
• Rated voltage: 400 V
• Phases: 3 + PE
• Frequency: 50 Hz
• Nominal current: 224 A
• Maximum load current: 251 A
