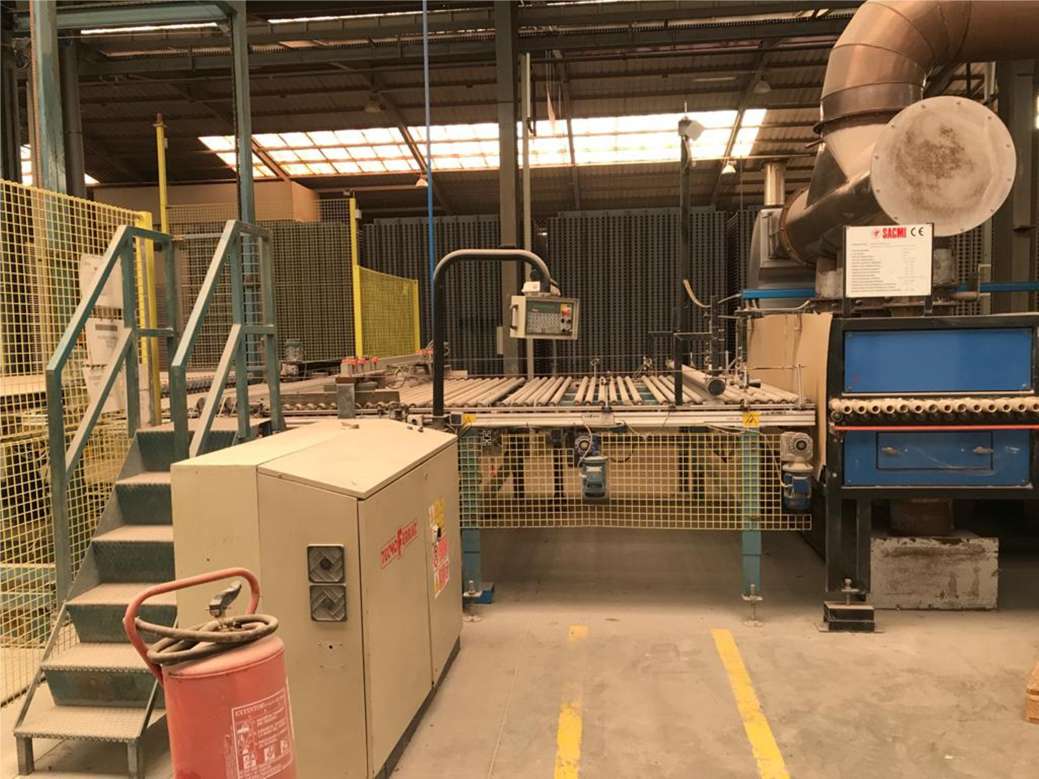

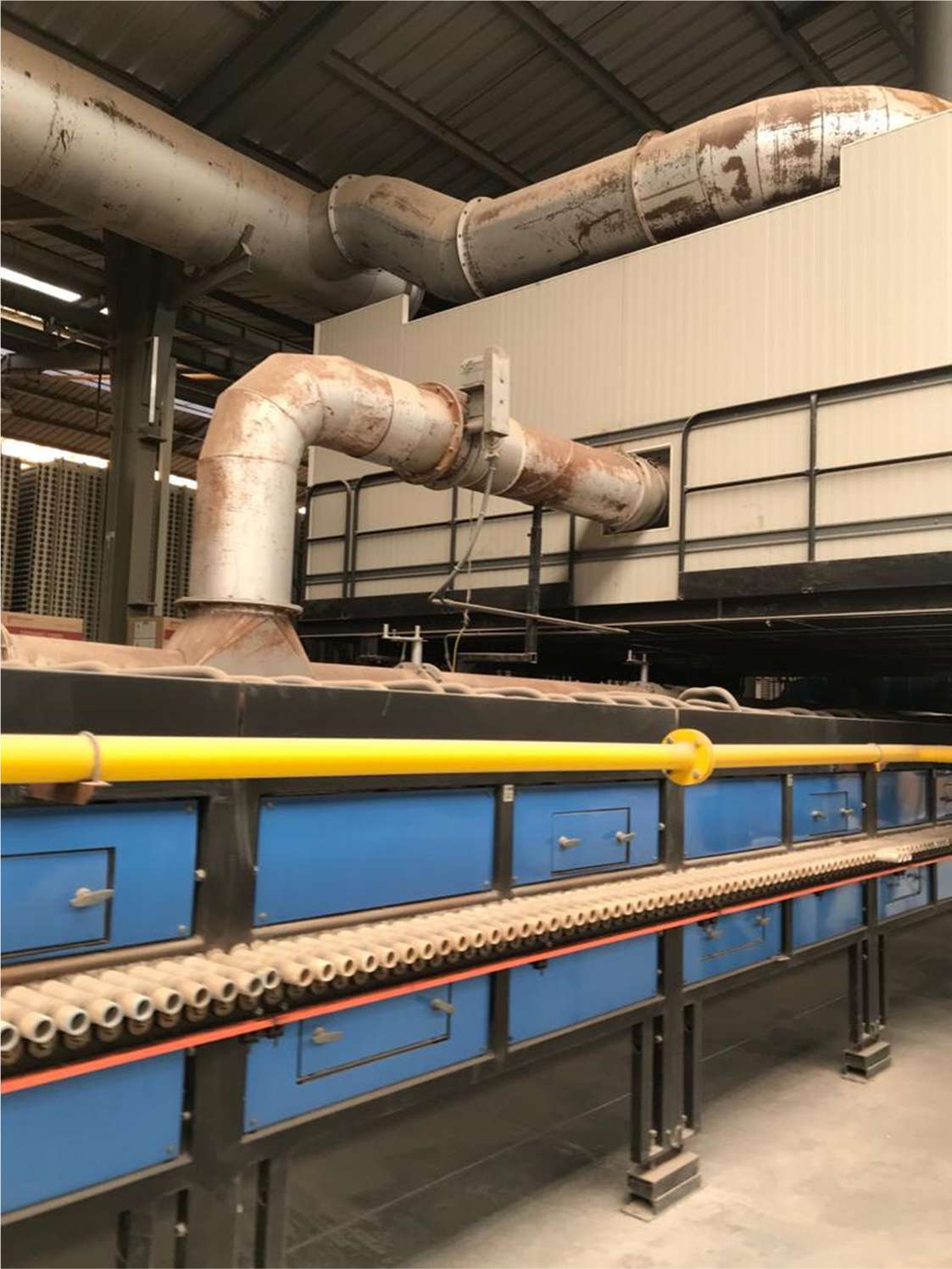

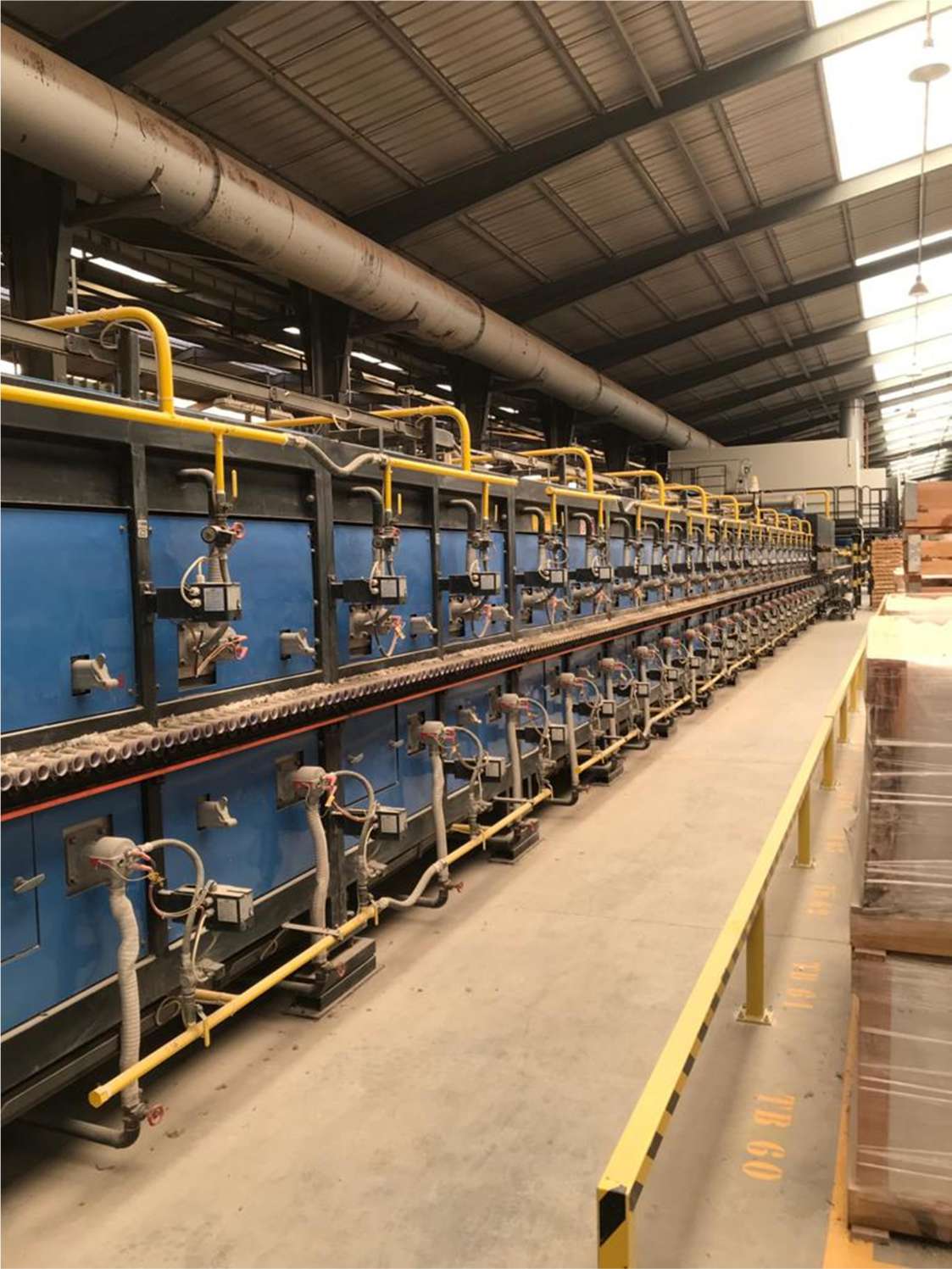

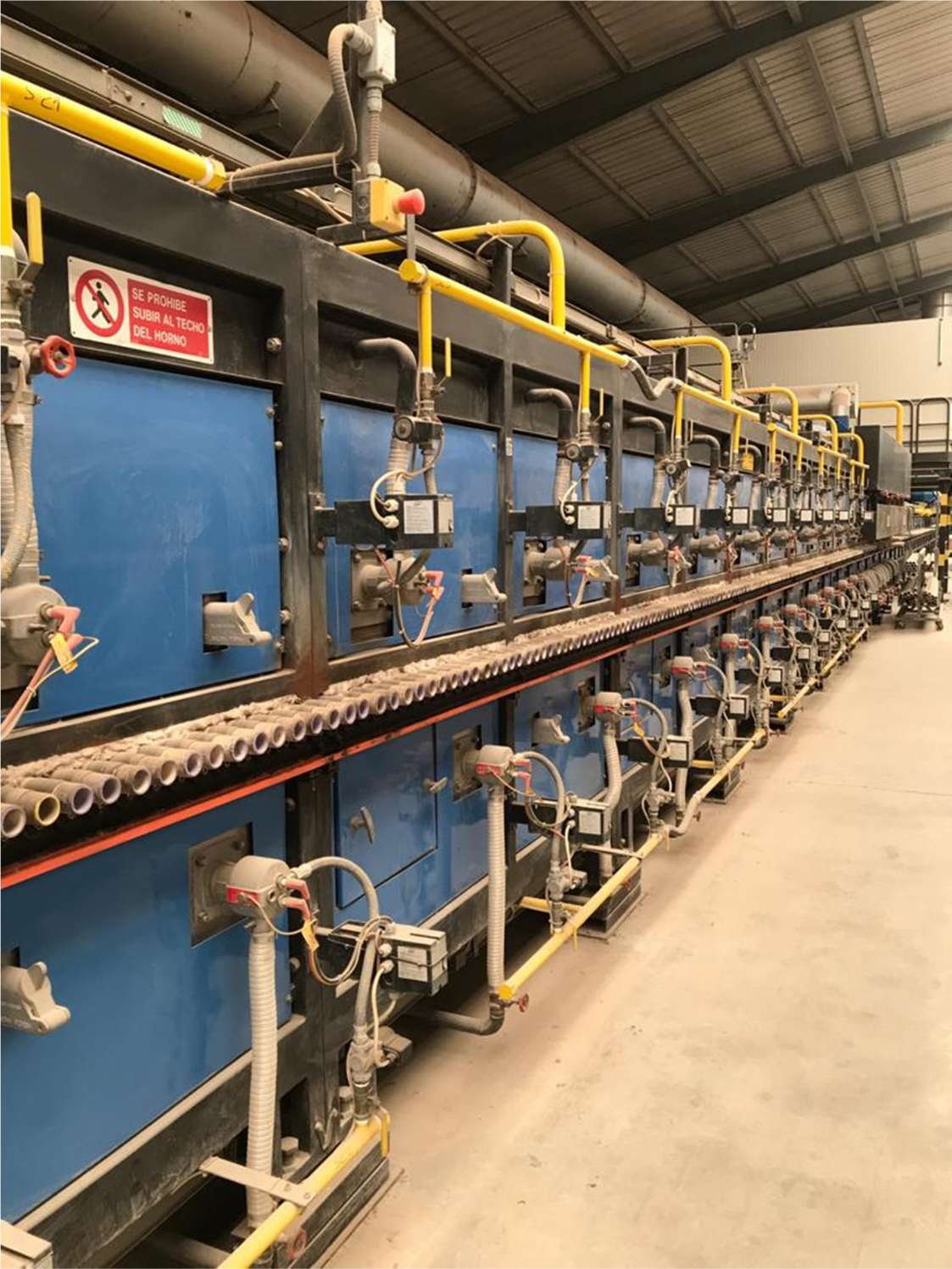

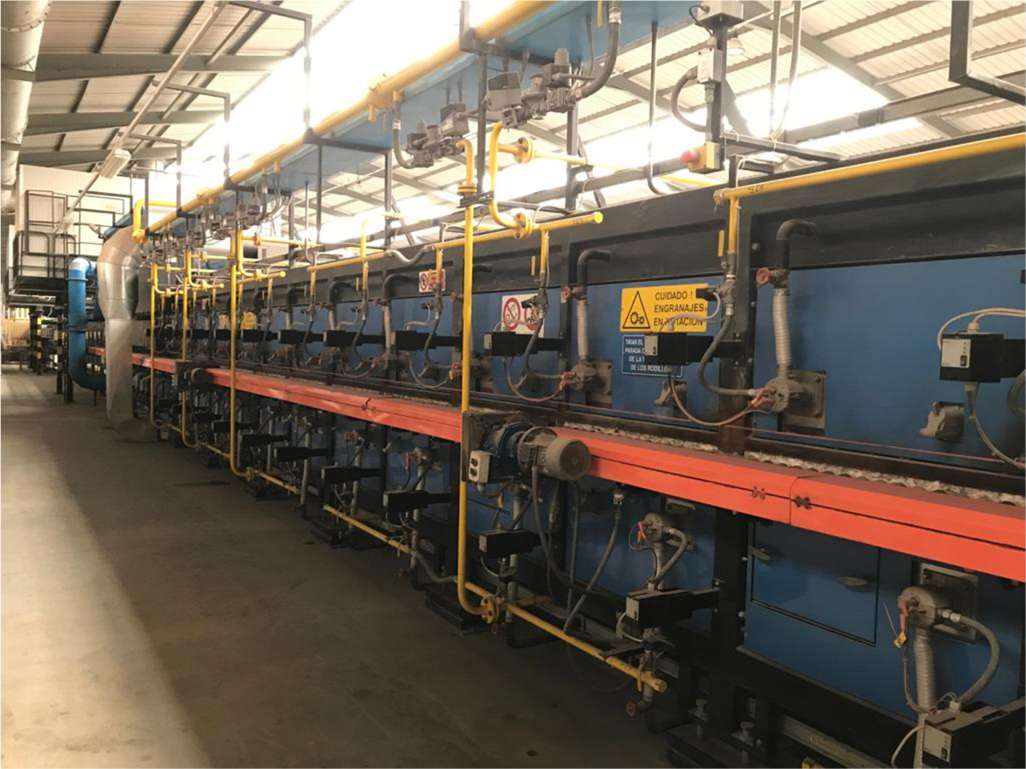

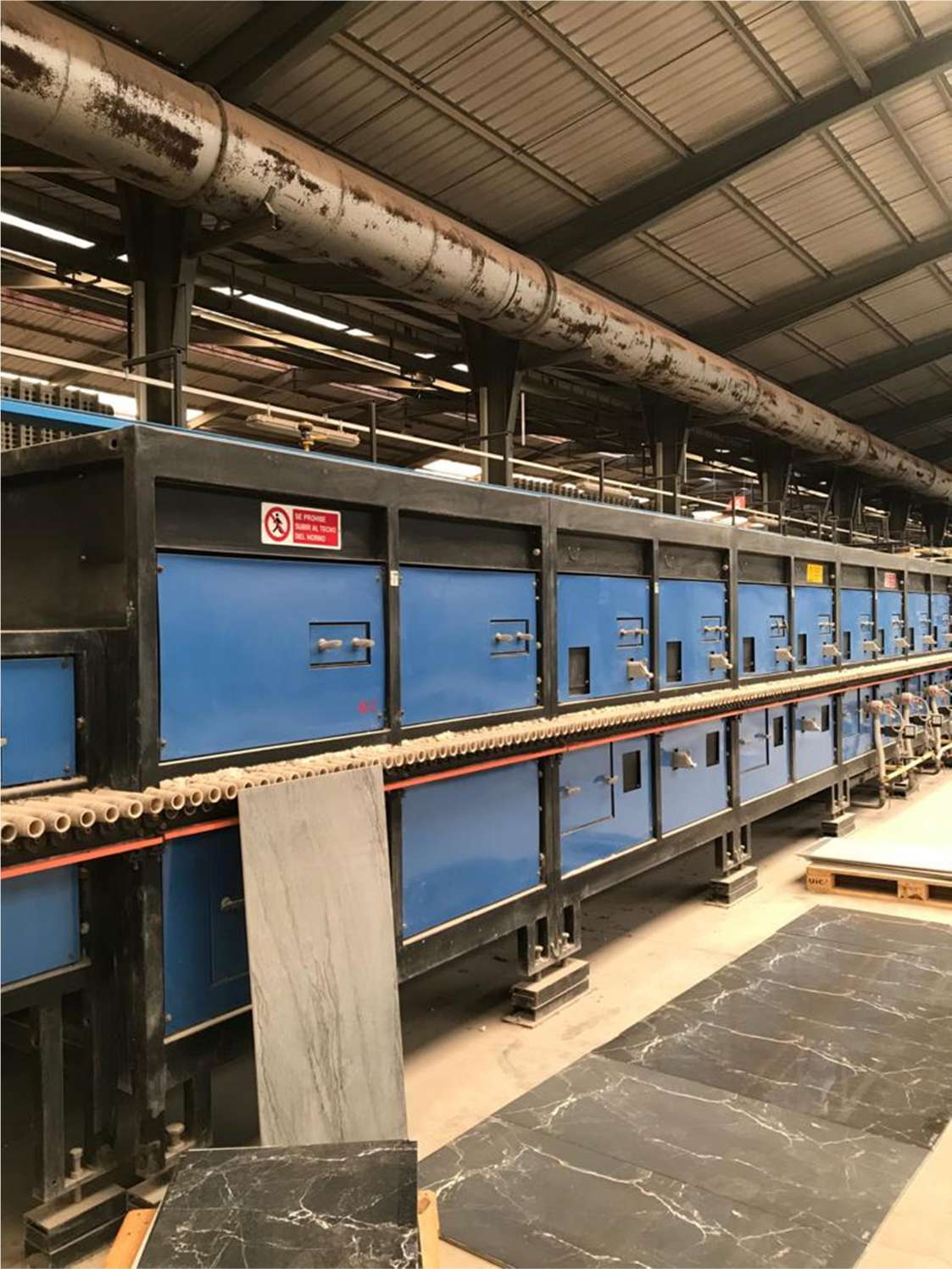

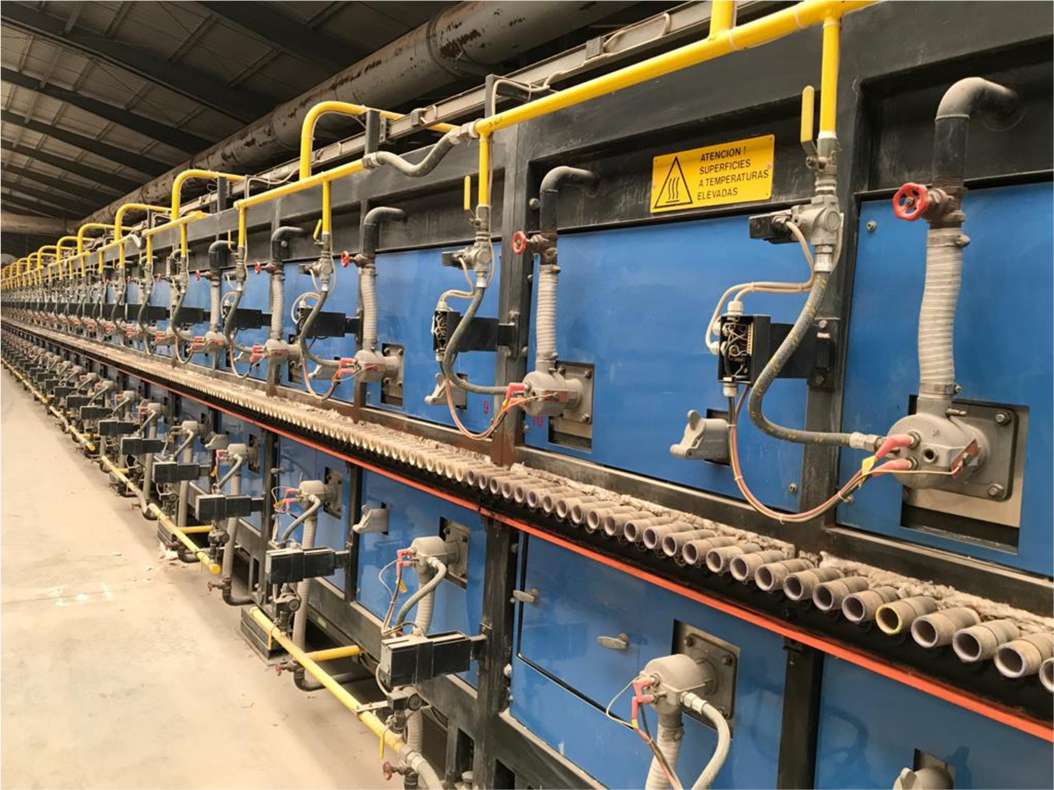

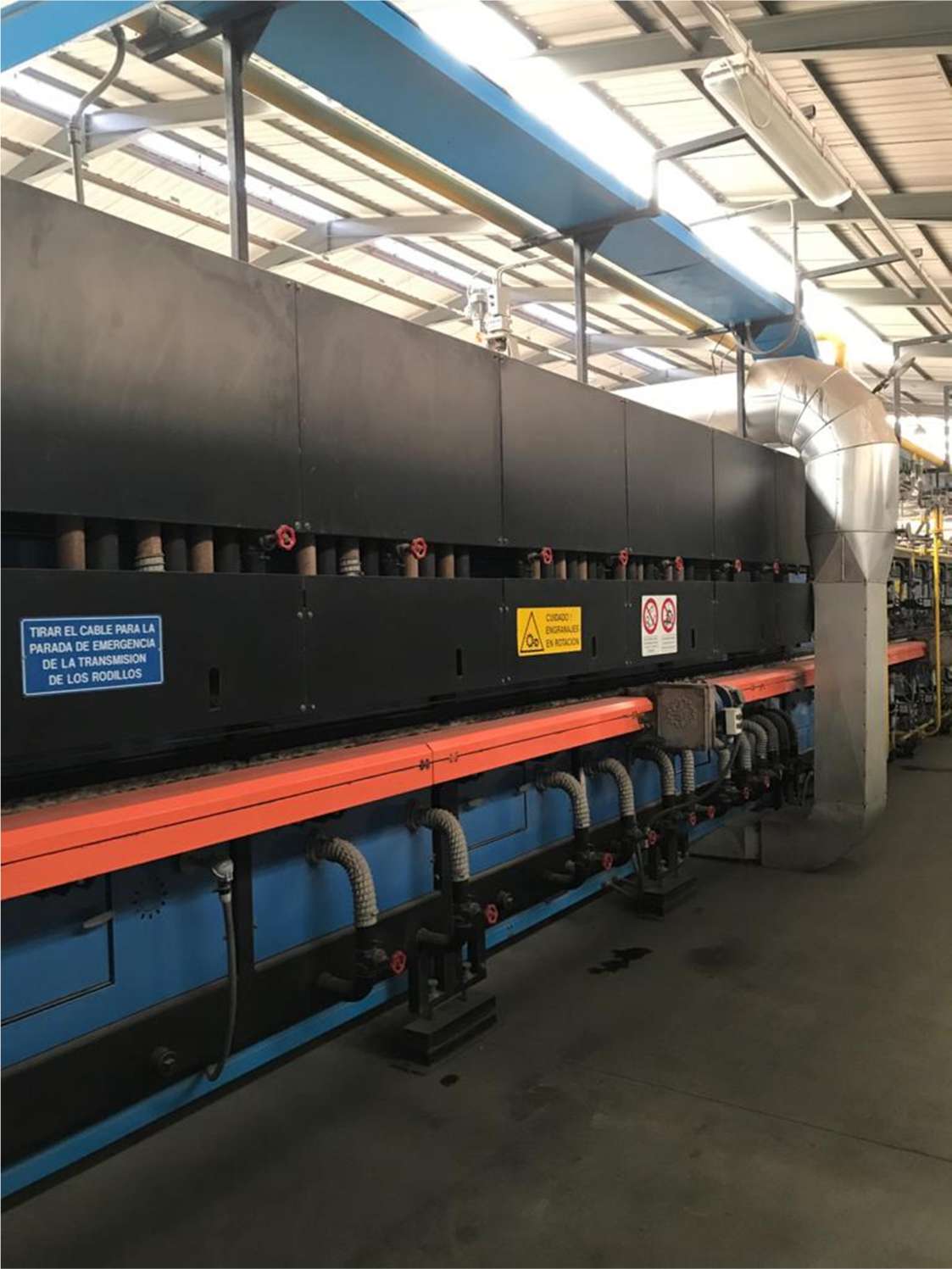

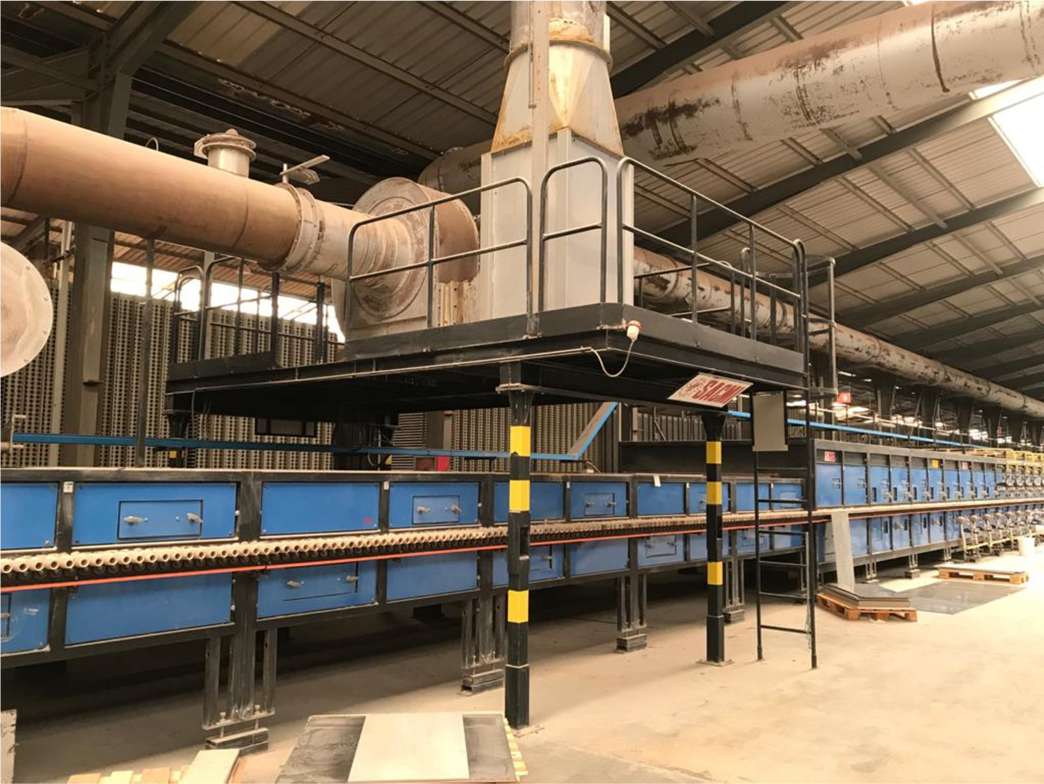

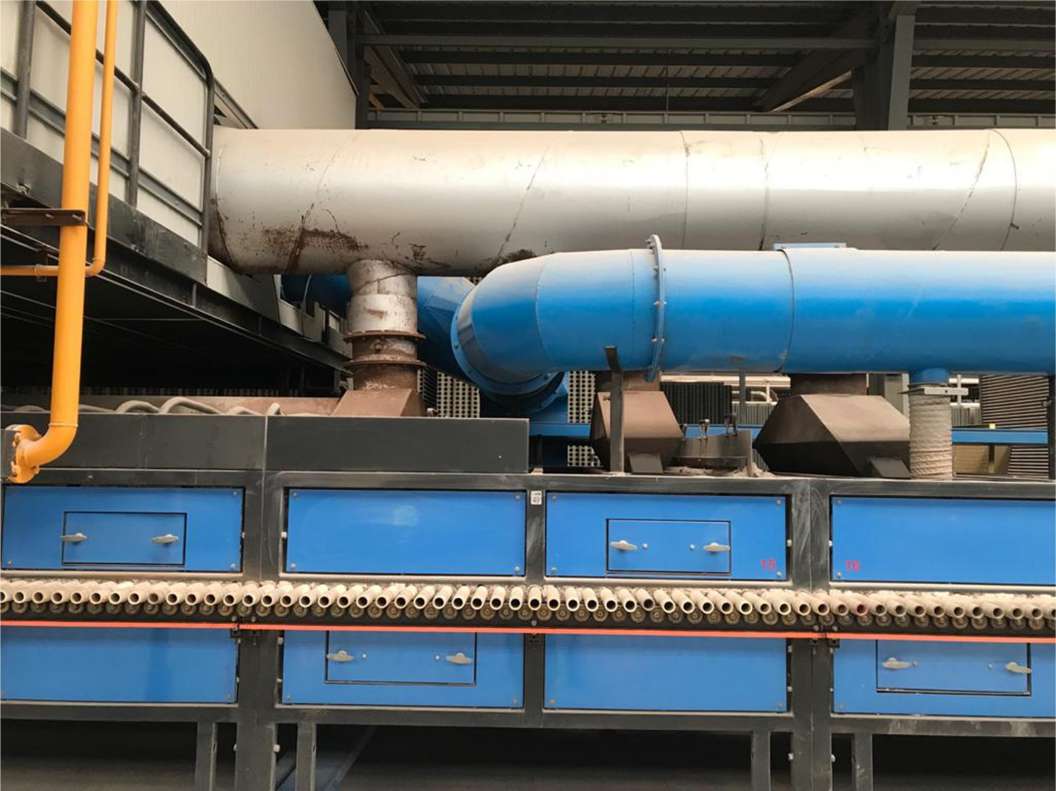

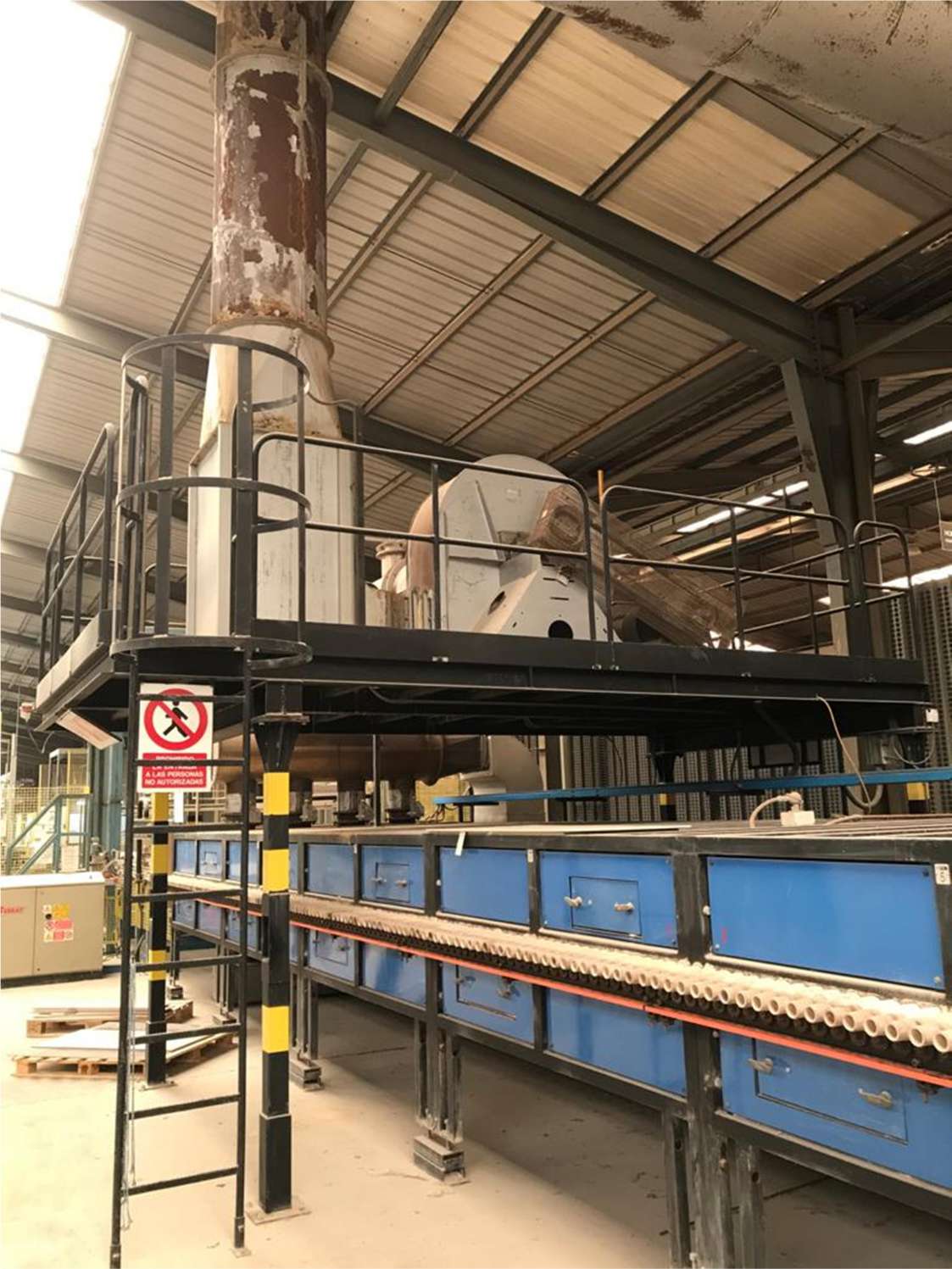

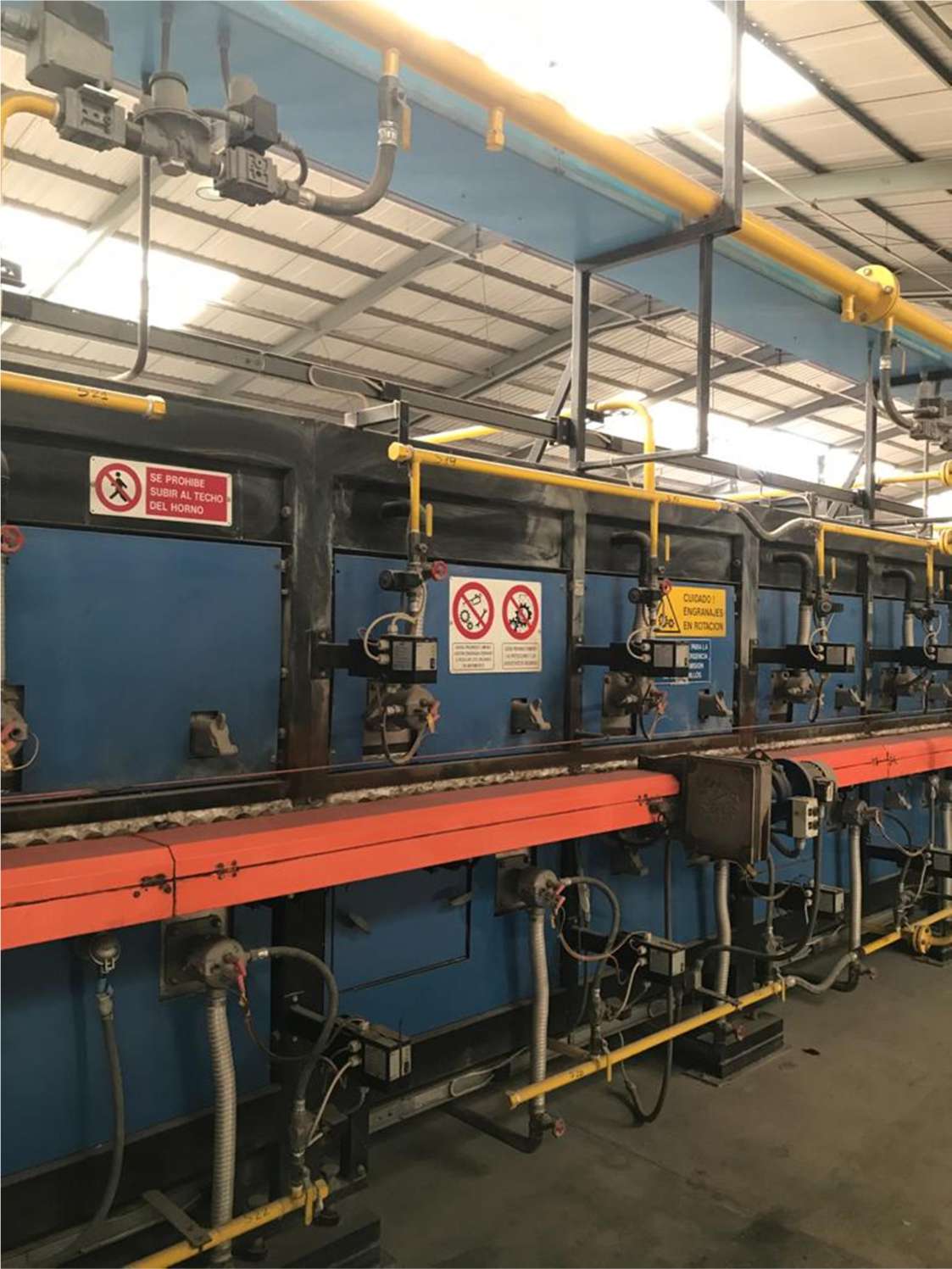

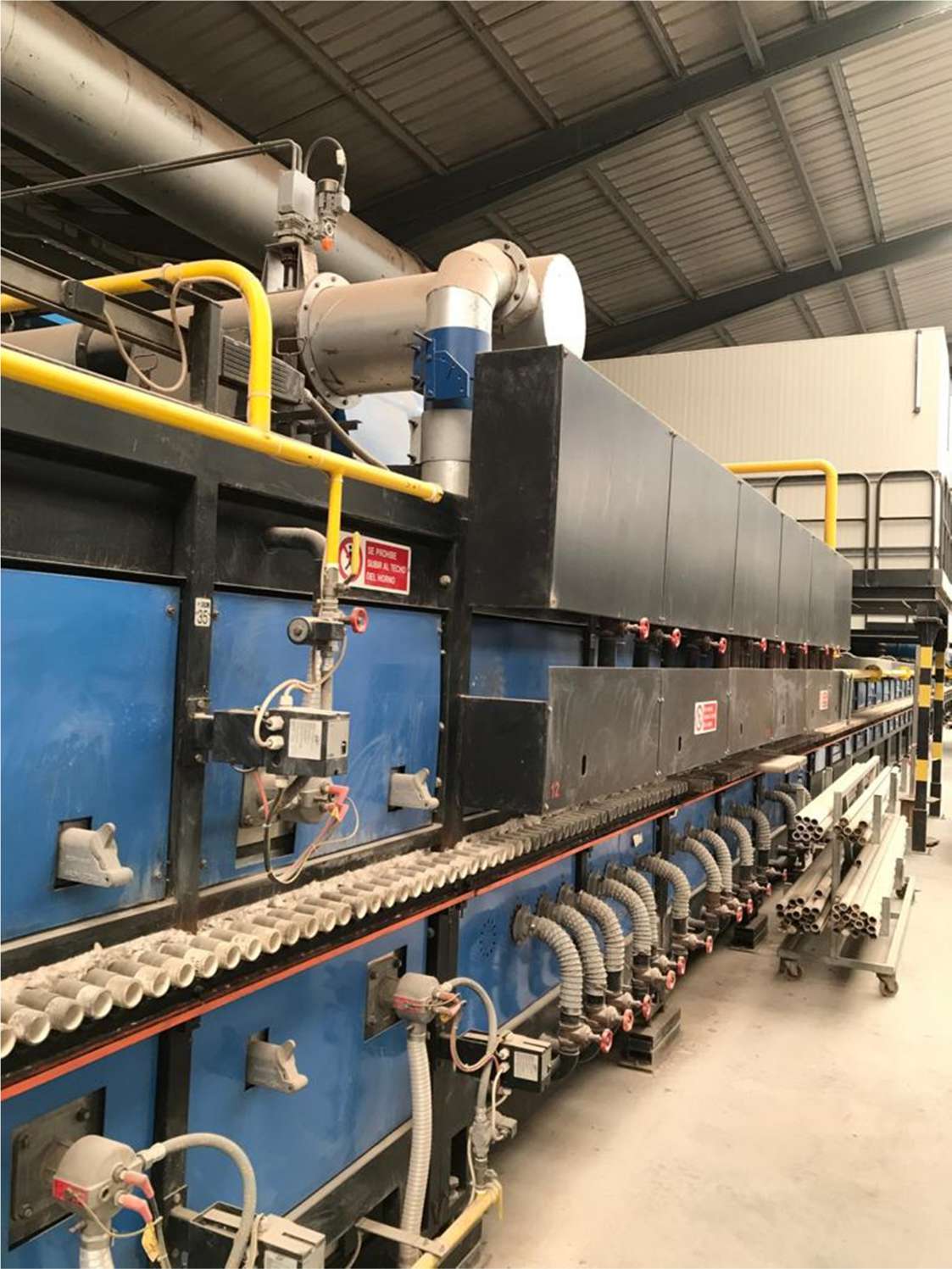

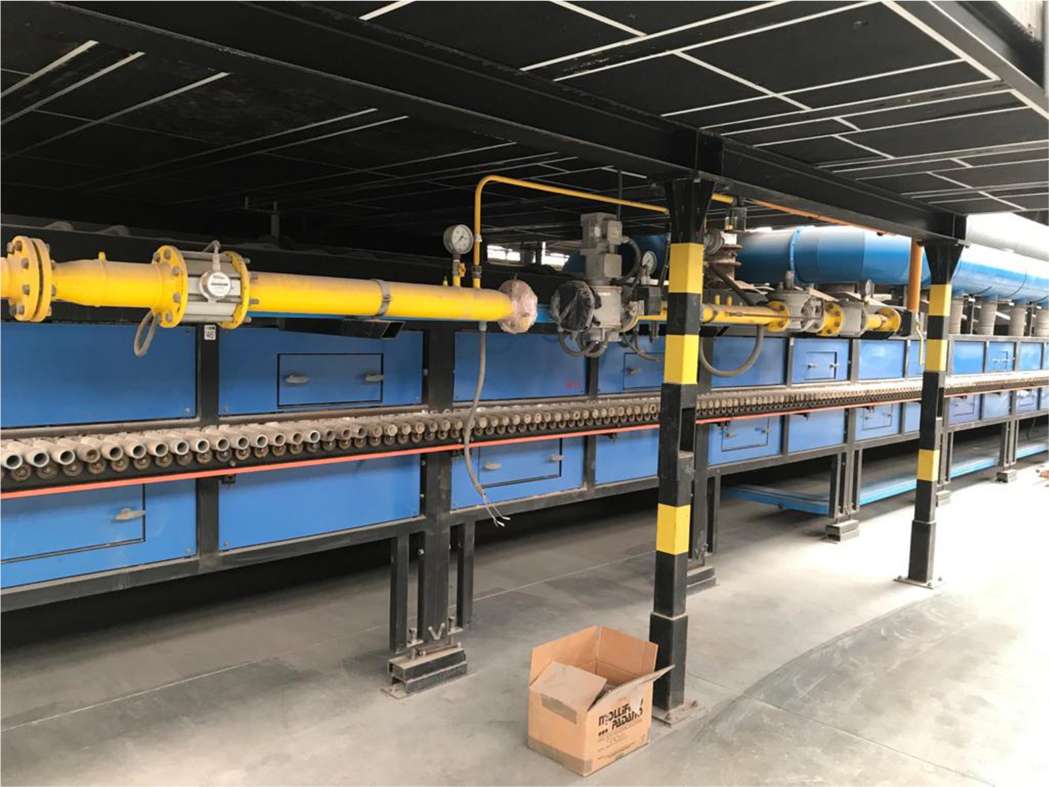

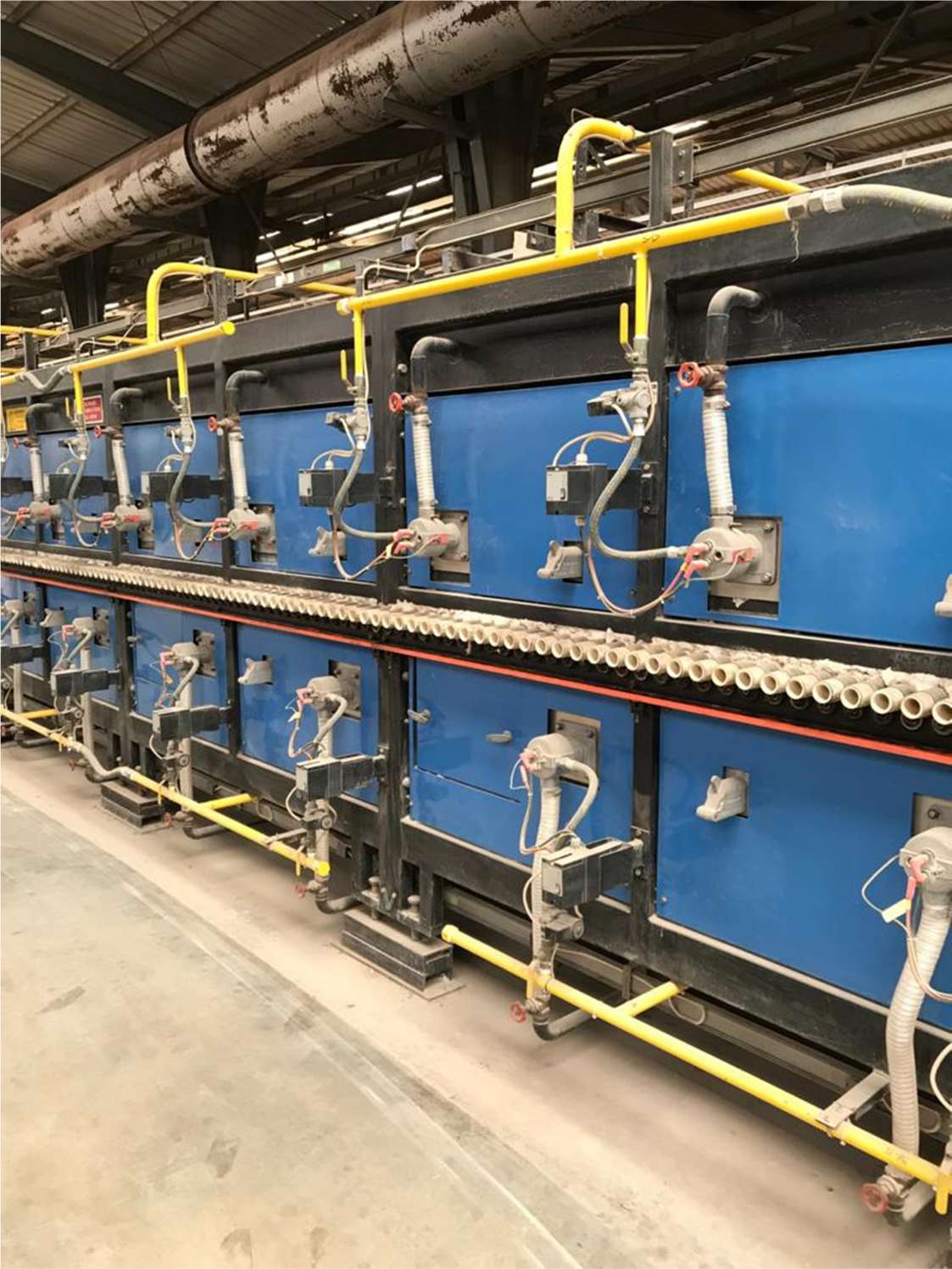

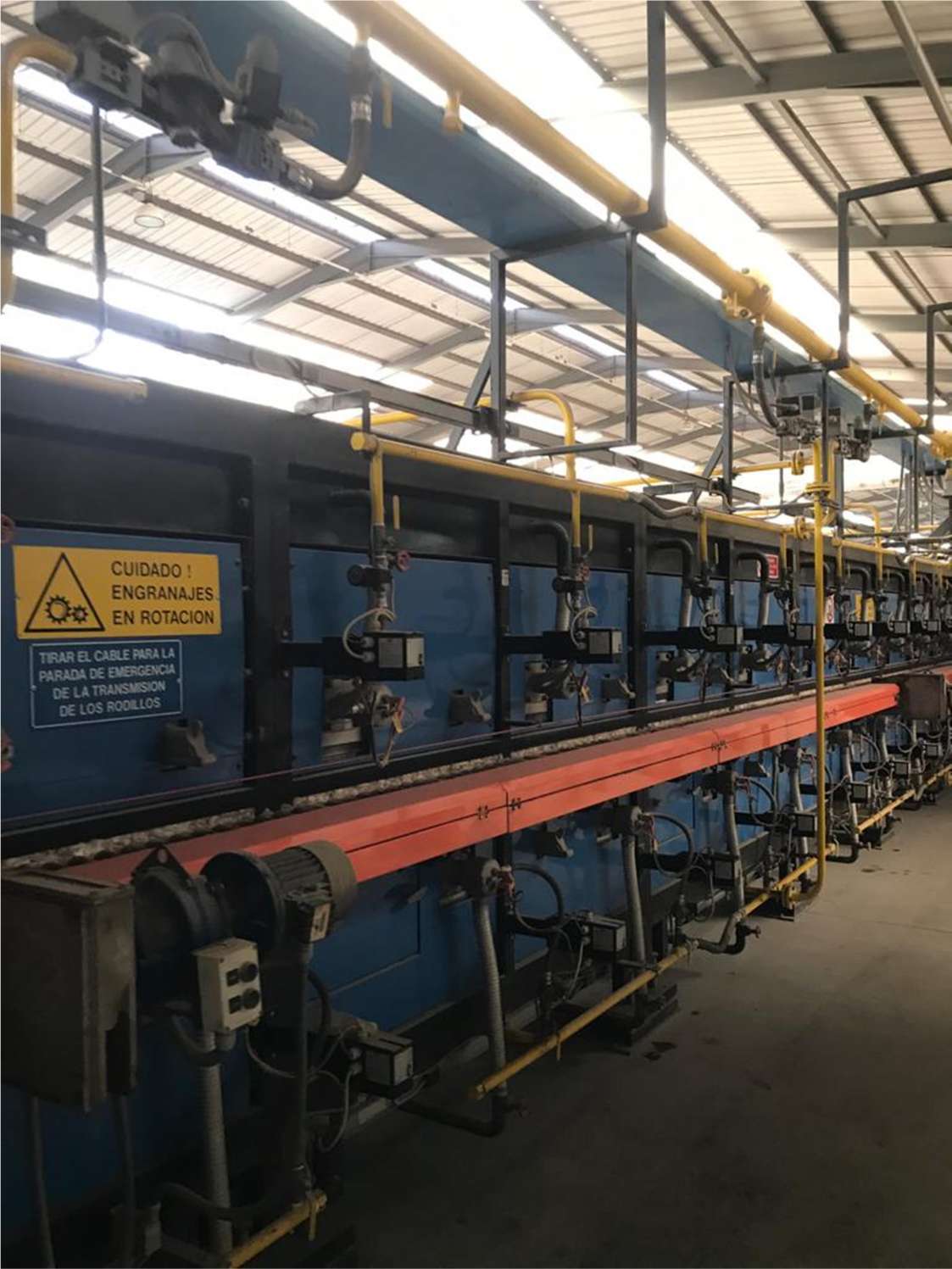

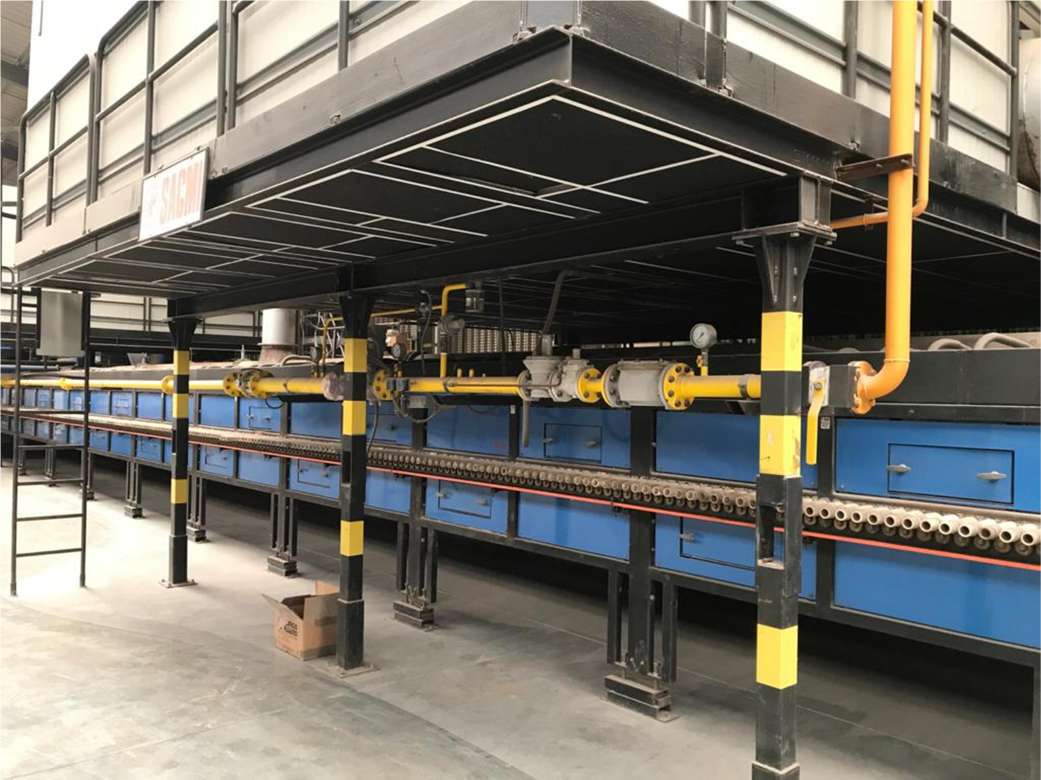

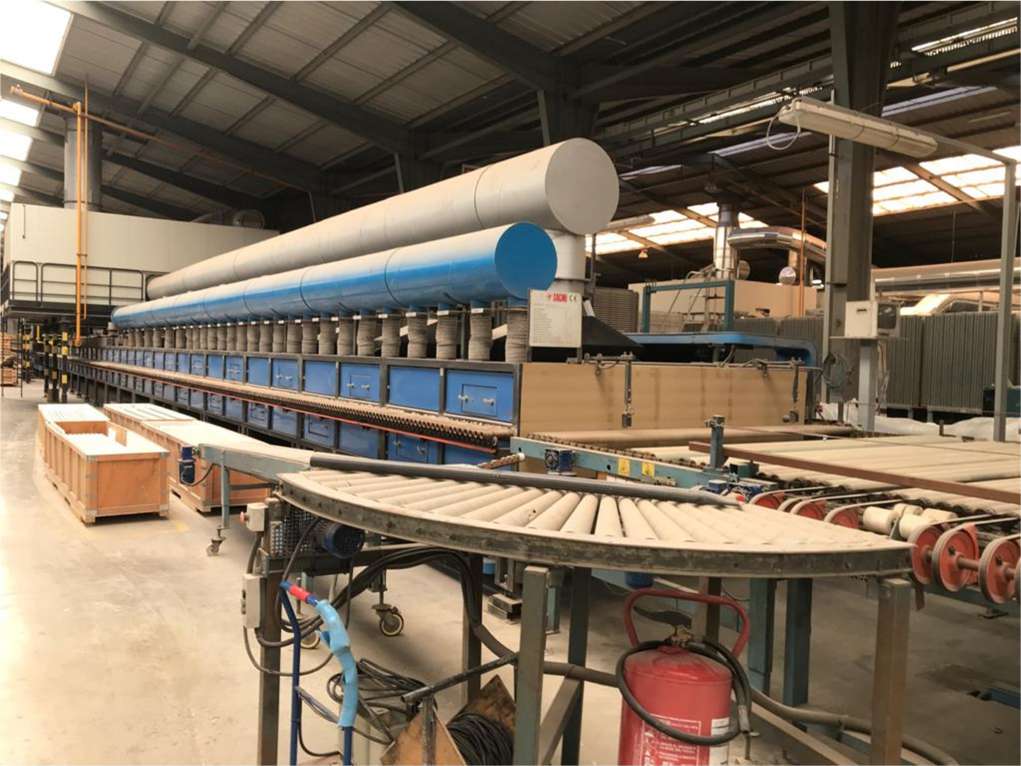

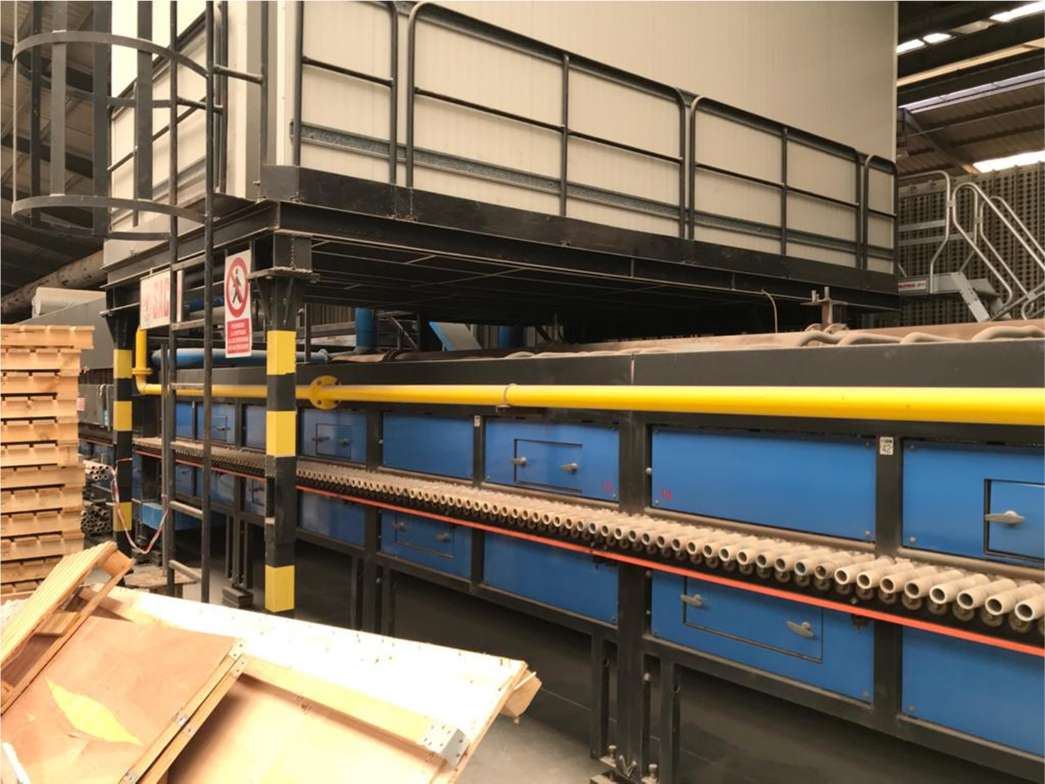

SACMI Roller Kiln FMS 240/119.7 (Serial 109295)

Descripción

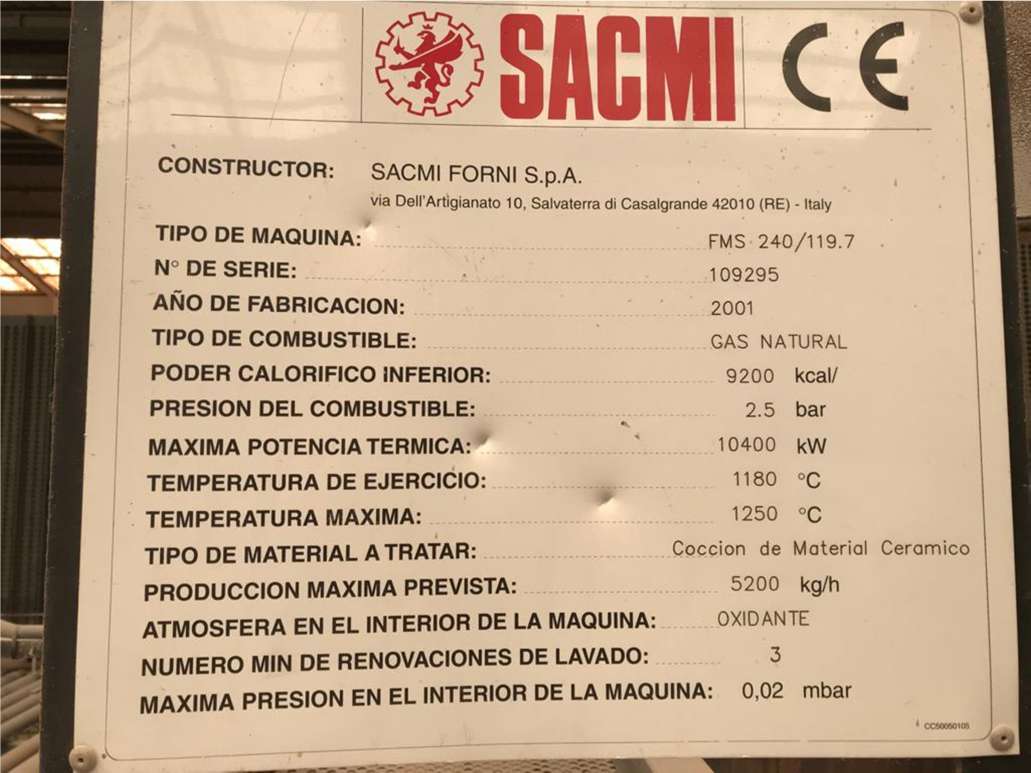

Technical Data – SACMI Roller Kiln FMS 240/119.7 (Serial 109295)
Machine Identification
• Machine type: Roller kiln
• Brand: SACMI
• Model: FMS 240/119.7
• Serial number: 109295
• Year of manufacture: 2001
⚙️ Mechanical Specifications

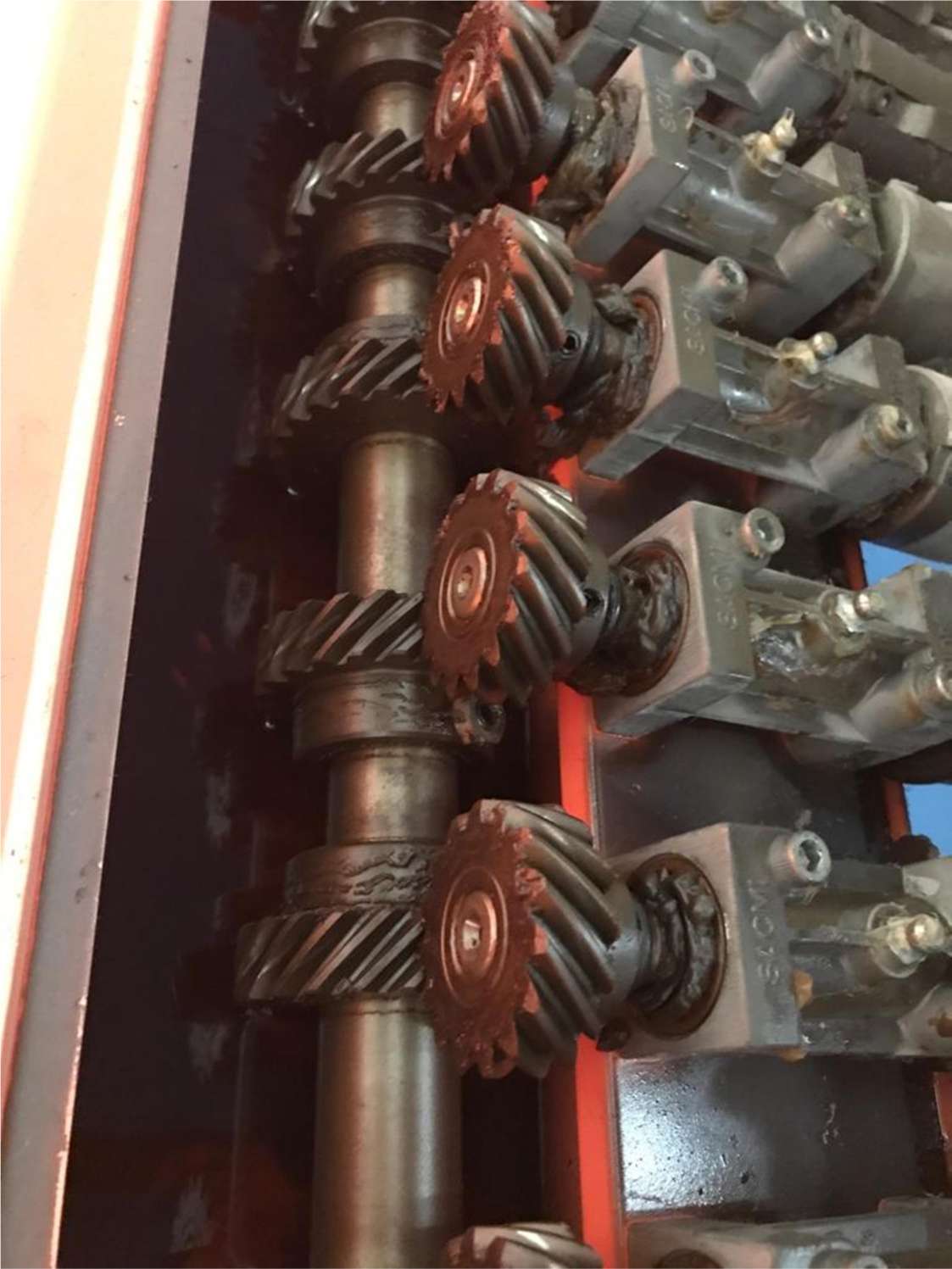

• Roller pitch (infeed/outfeed): 67.7 mm
• Roller pitch (firing zone): 60.0 mm

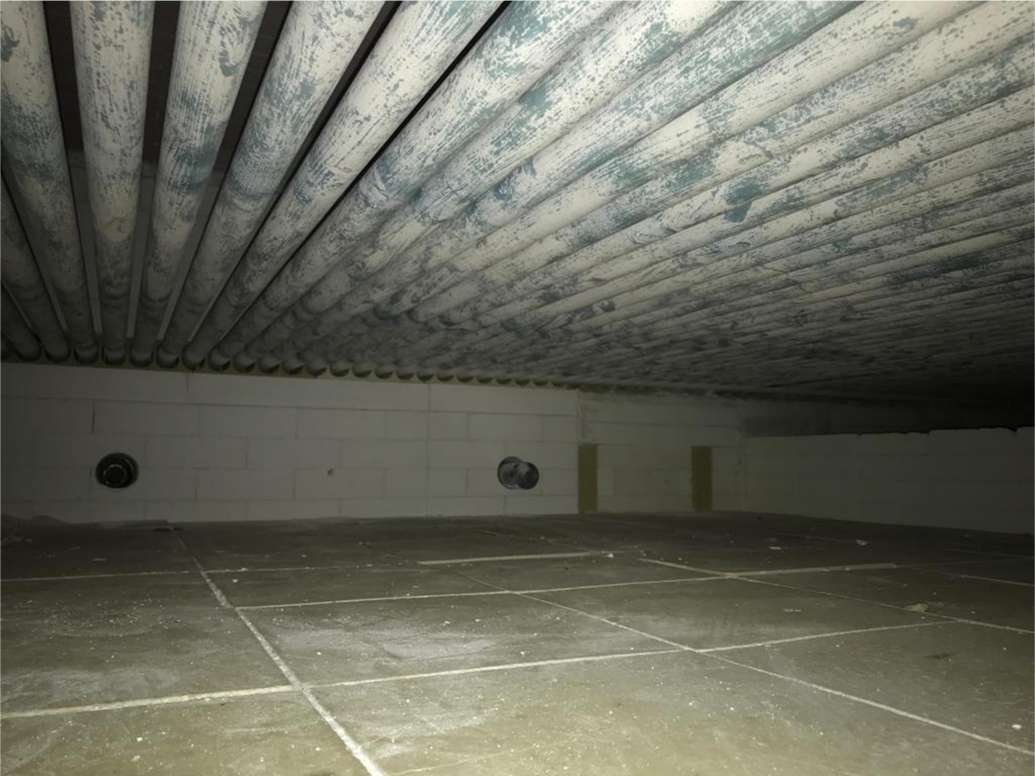

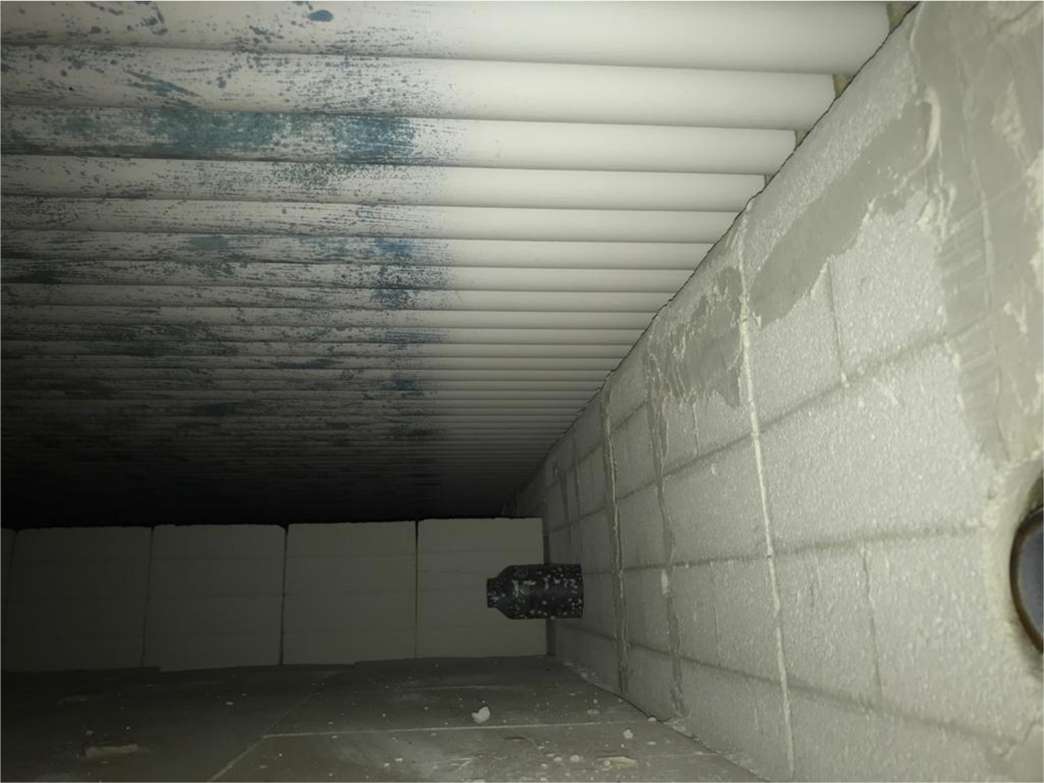

• Roller diameter: 45.0 mm

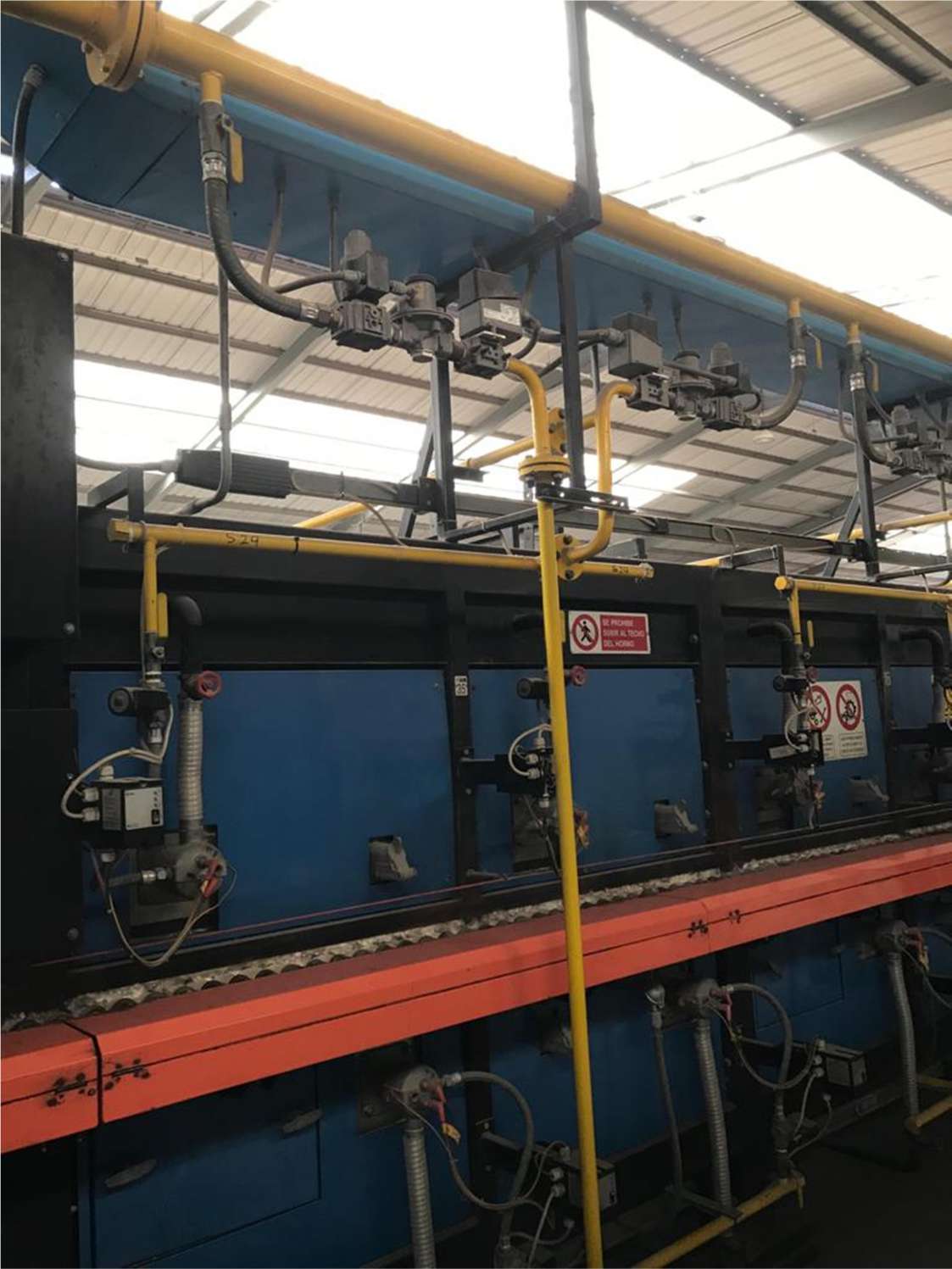

Thermal Specifications

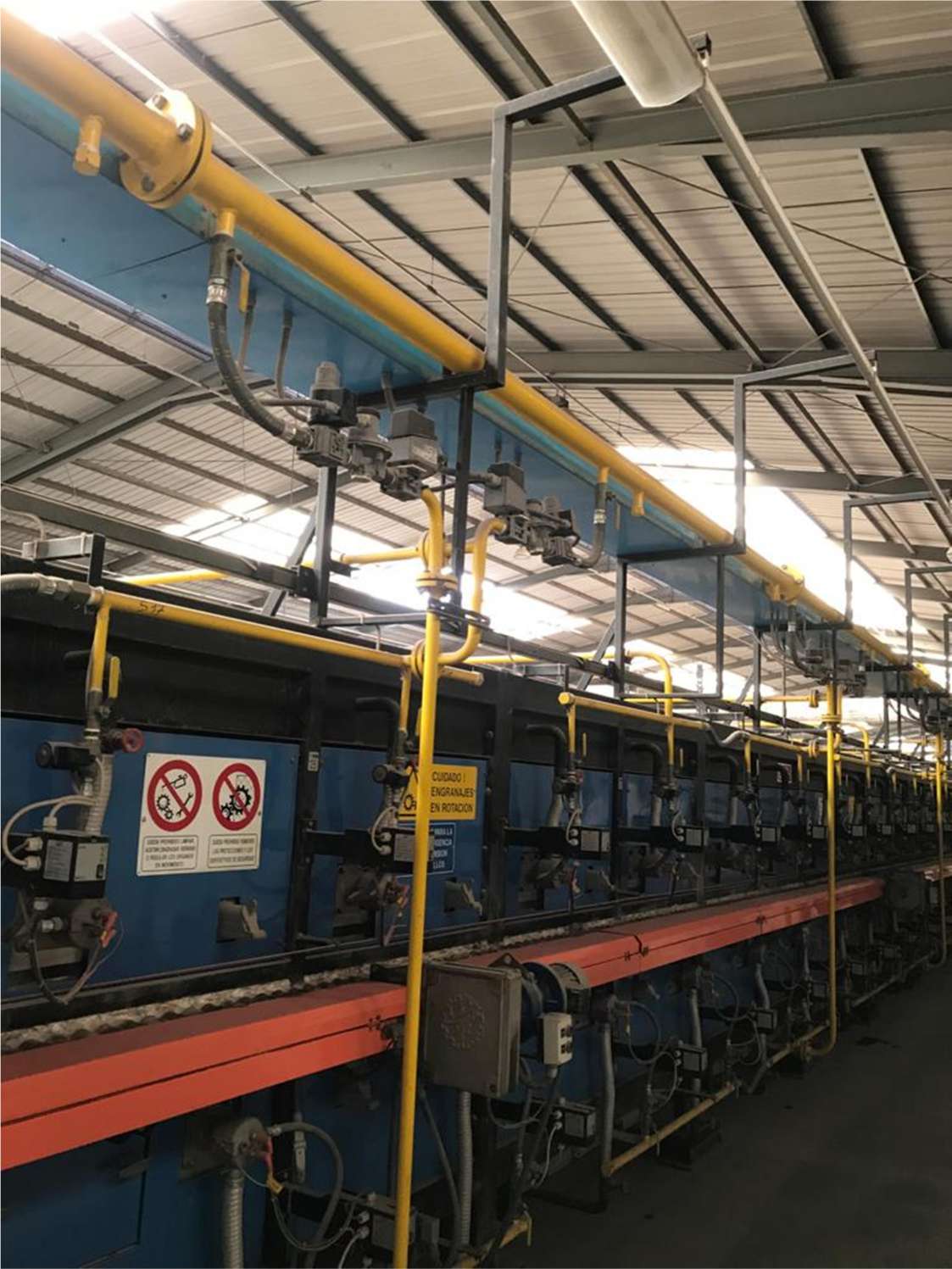

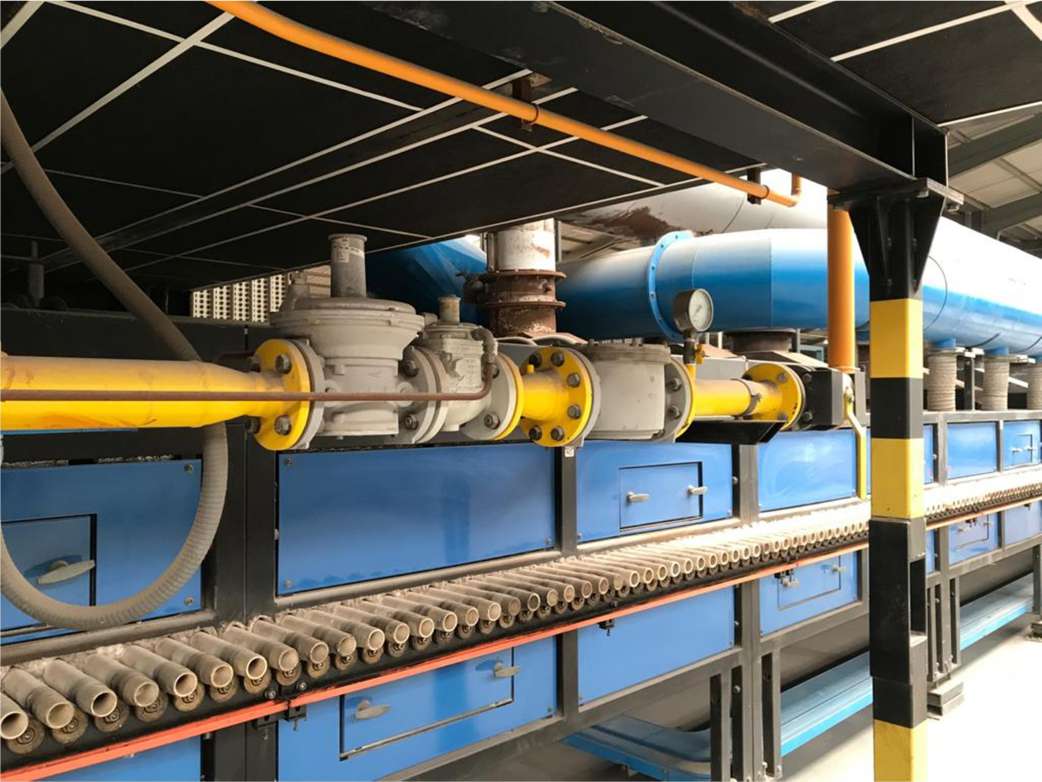

• Fuel type: Natural gas
• Lower heating value: 9200 kcal
• Fuel pressure: 2.5 bar
• Maximum thermal power: 10,400 kW
• Operating temperature: 1180 °C
• Maximum temperature: 1250 °C
Material & Production
• Material processed: Firing of ceramic material
• Maximum production capacity: 5200 kg/h
• Internal atmosphere: Oxidizing
Washing & Safety
• Minimum number of washing renewals: 3
• Maximum internal pressure: 0.02 mbar
