Descripción

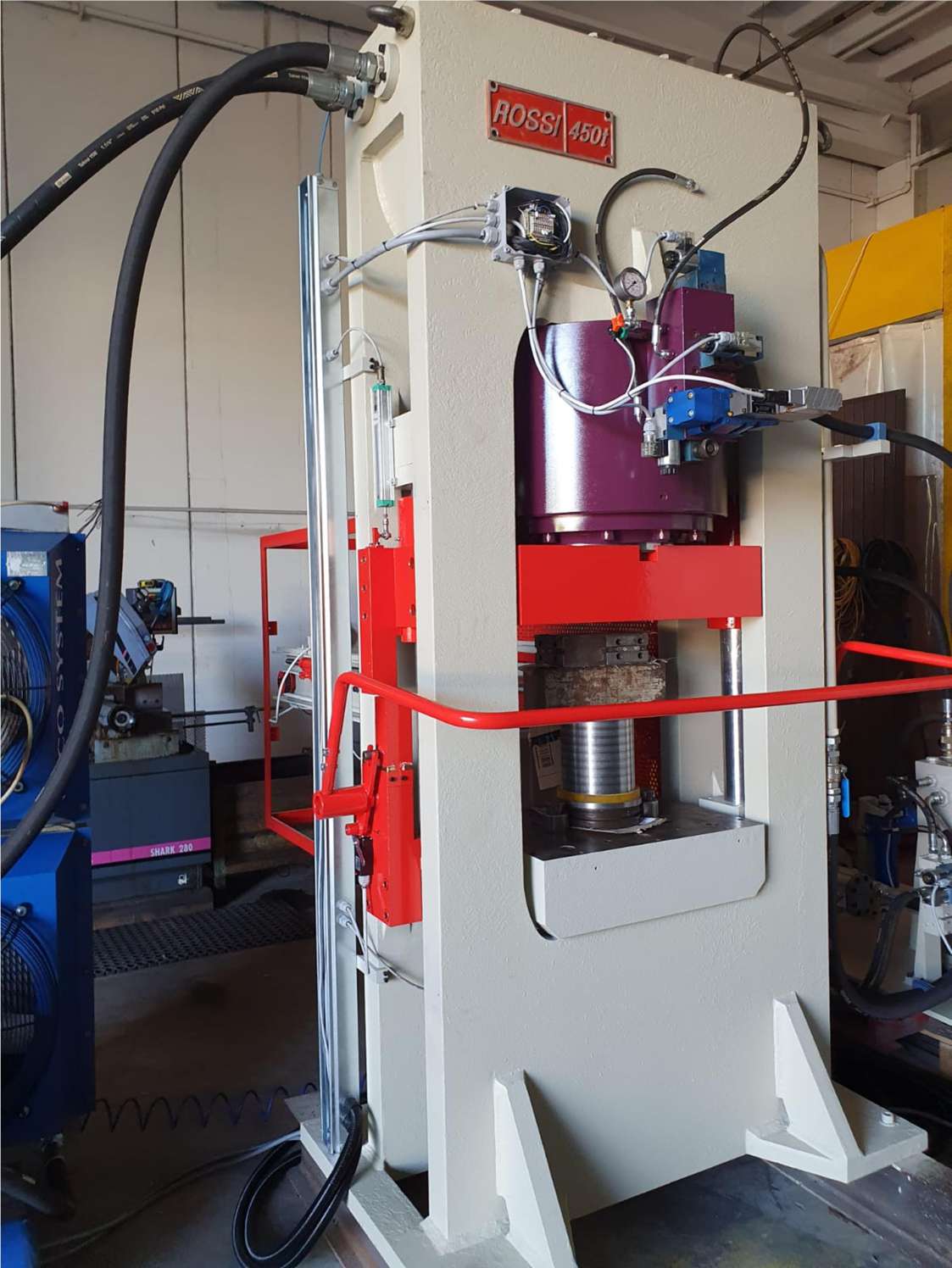

⚙️ Main Features

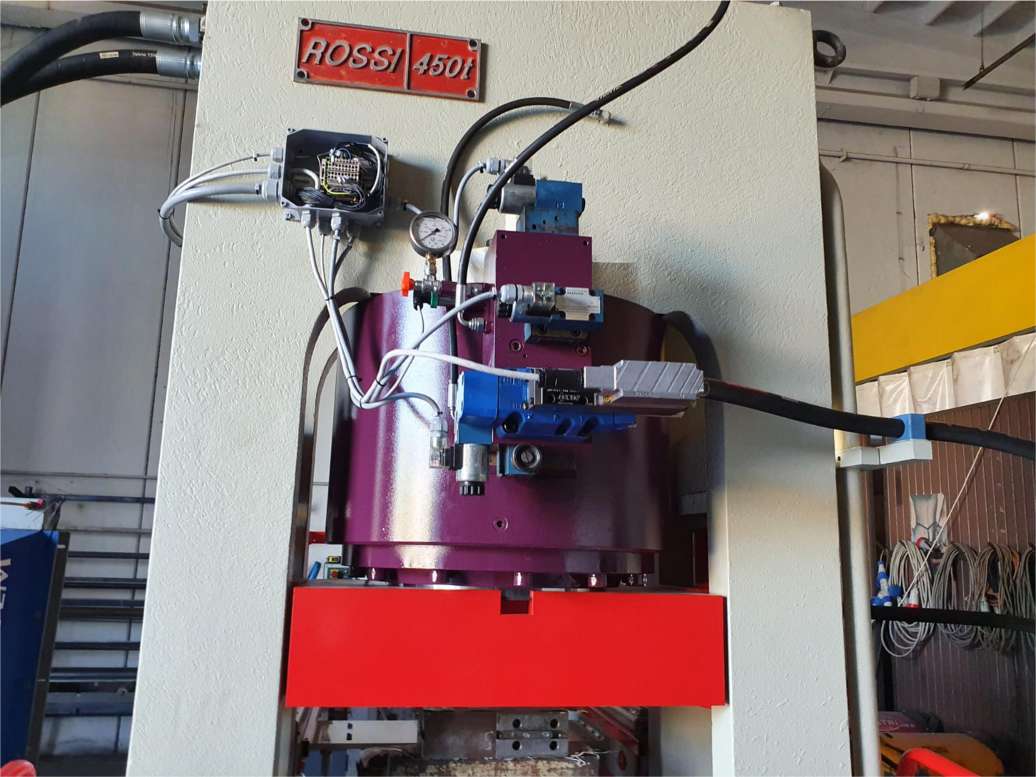

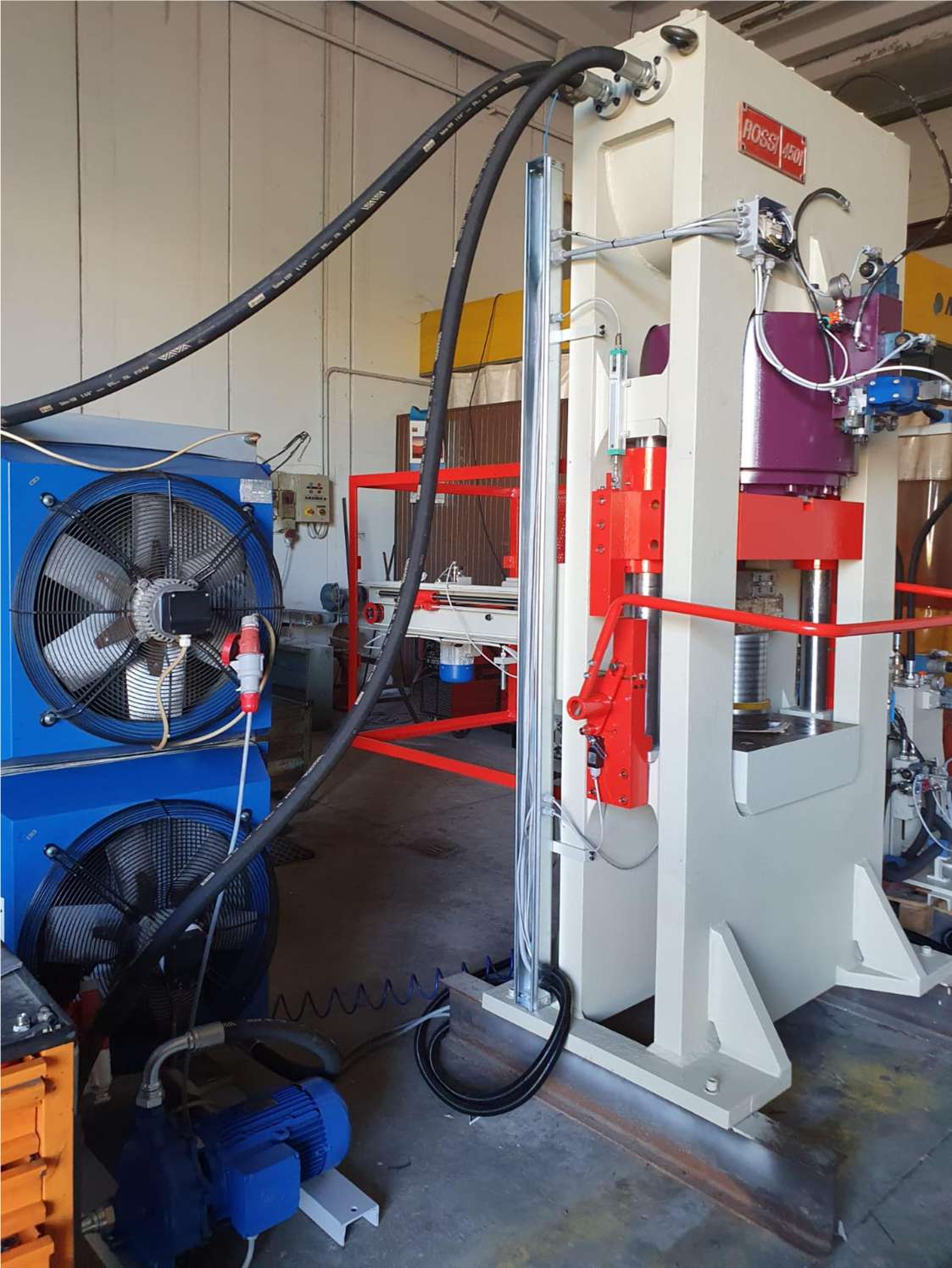

• Brand: F.lli Rossi (Italy)
• Model: ROSSI 4501
• Type: Automatic press
• Nominal pressure: 450 tons
• Production cycles: Automatic
• Piston stroke: 180 mm
• Clearance between columns: 700 mm
• Bed depth: 450 mm
• Crossbeam depth: 400 mm
• Maximum workpiece format: 300 × 300 mm

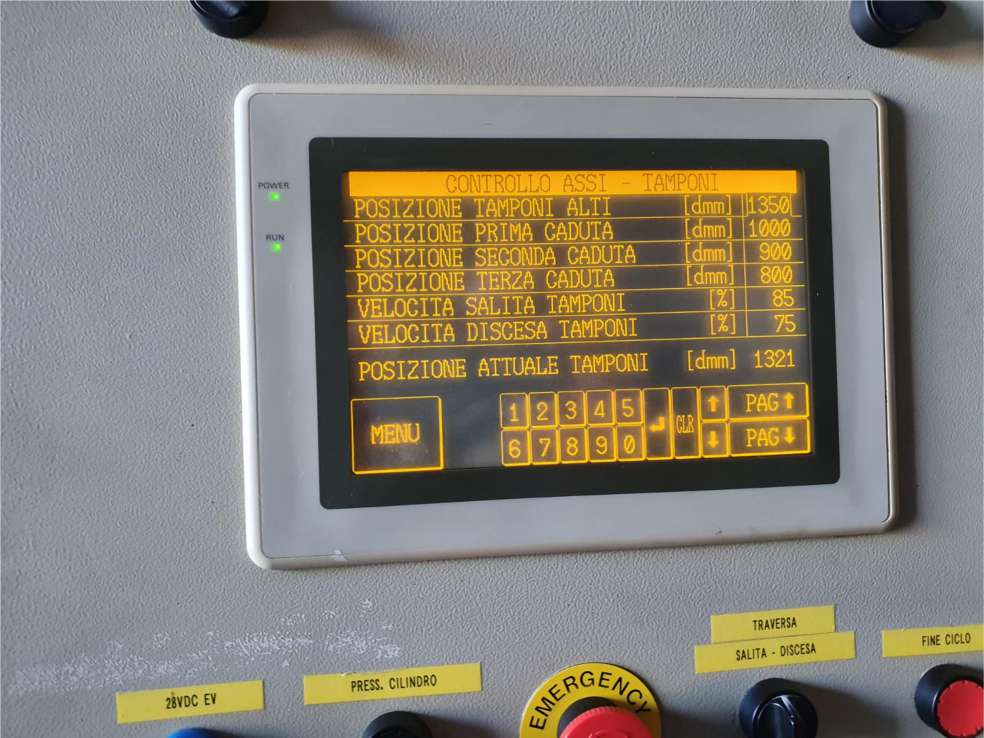

Axis Control – Pads
• Initial position (High): dmm 1350
• First drop: dmm 1000
• Second drop: dmm 900
• Third drop: dmm 800
• Pad ascent speed: 85 %
• Pad descent speed: 75 %
• Current pad position (indicated): dmm 1321

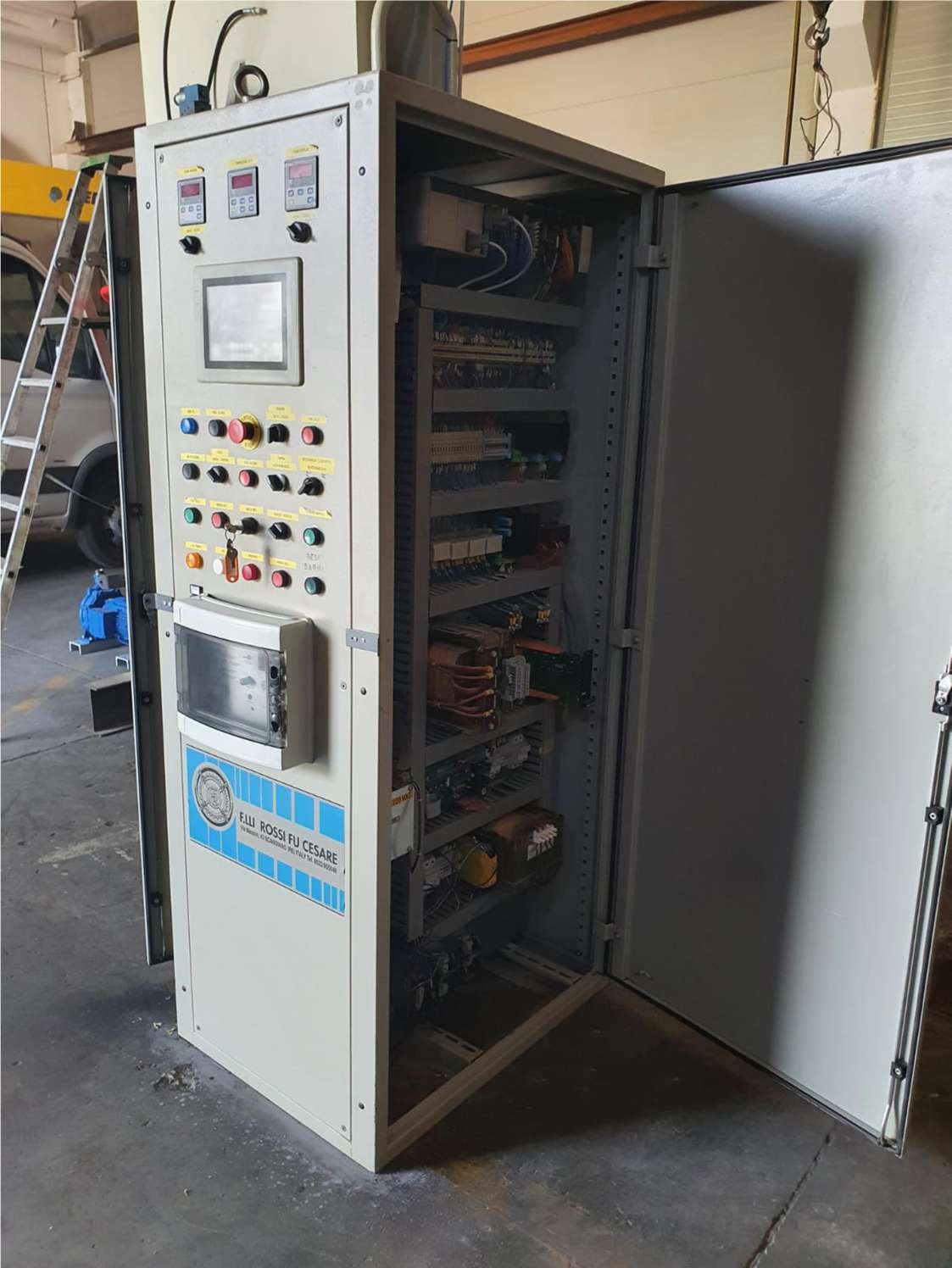

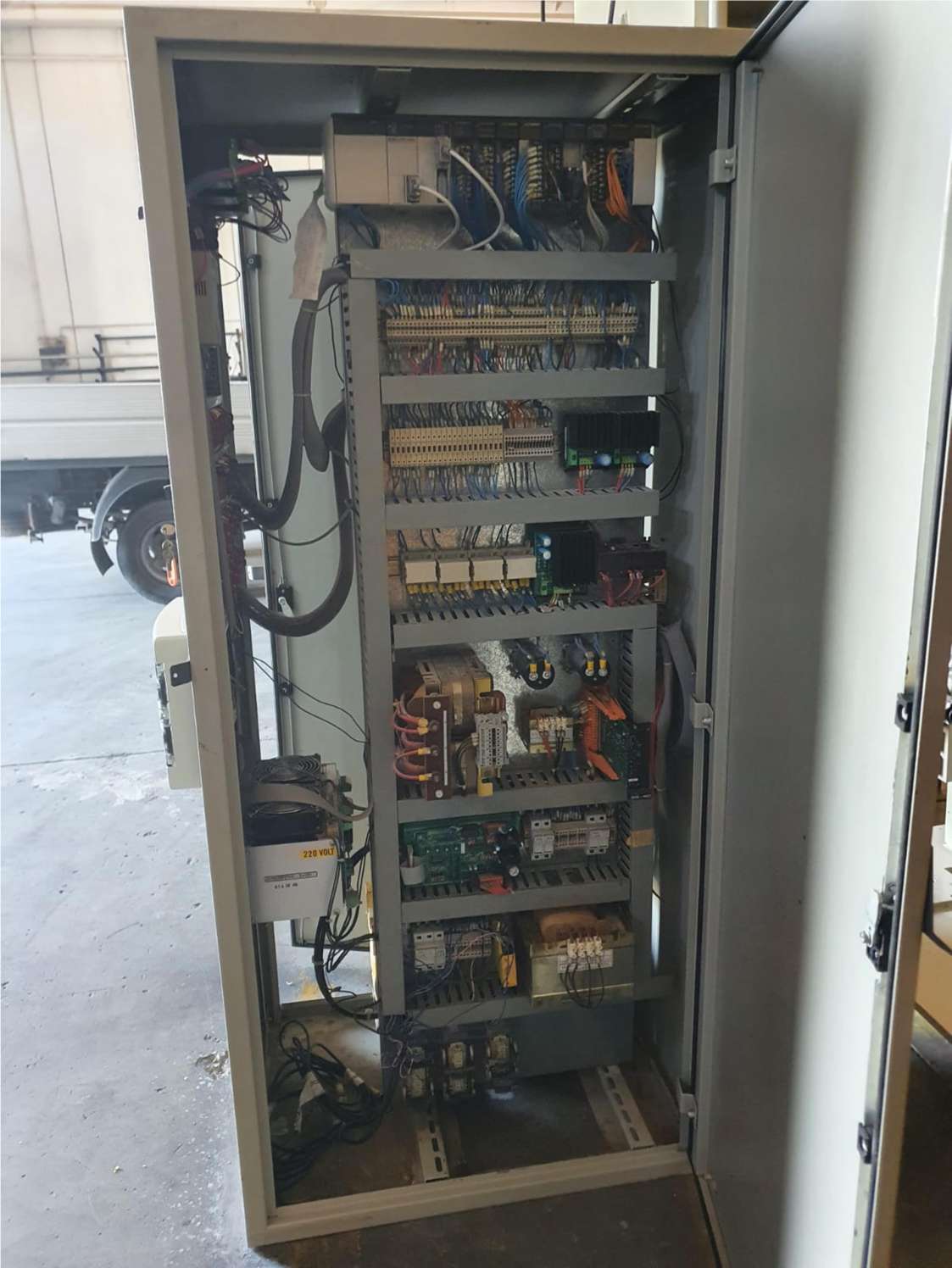

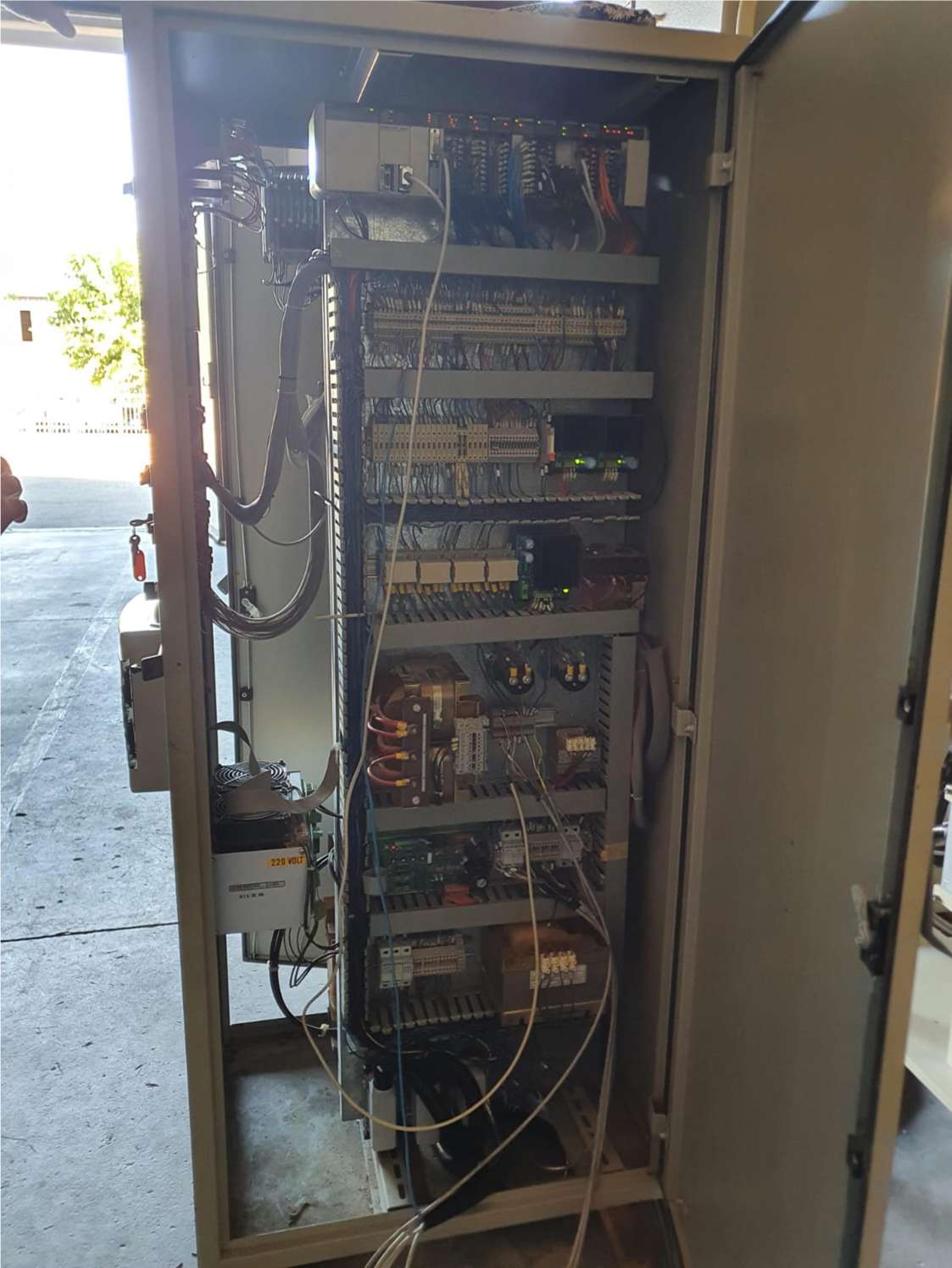

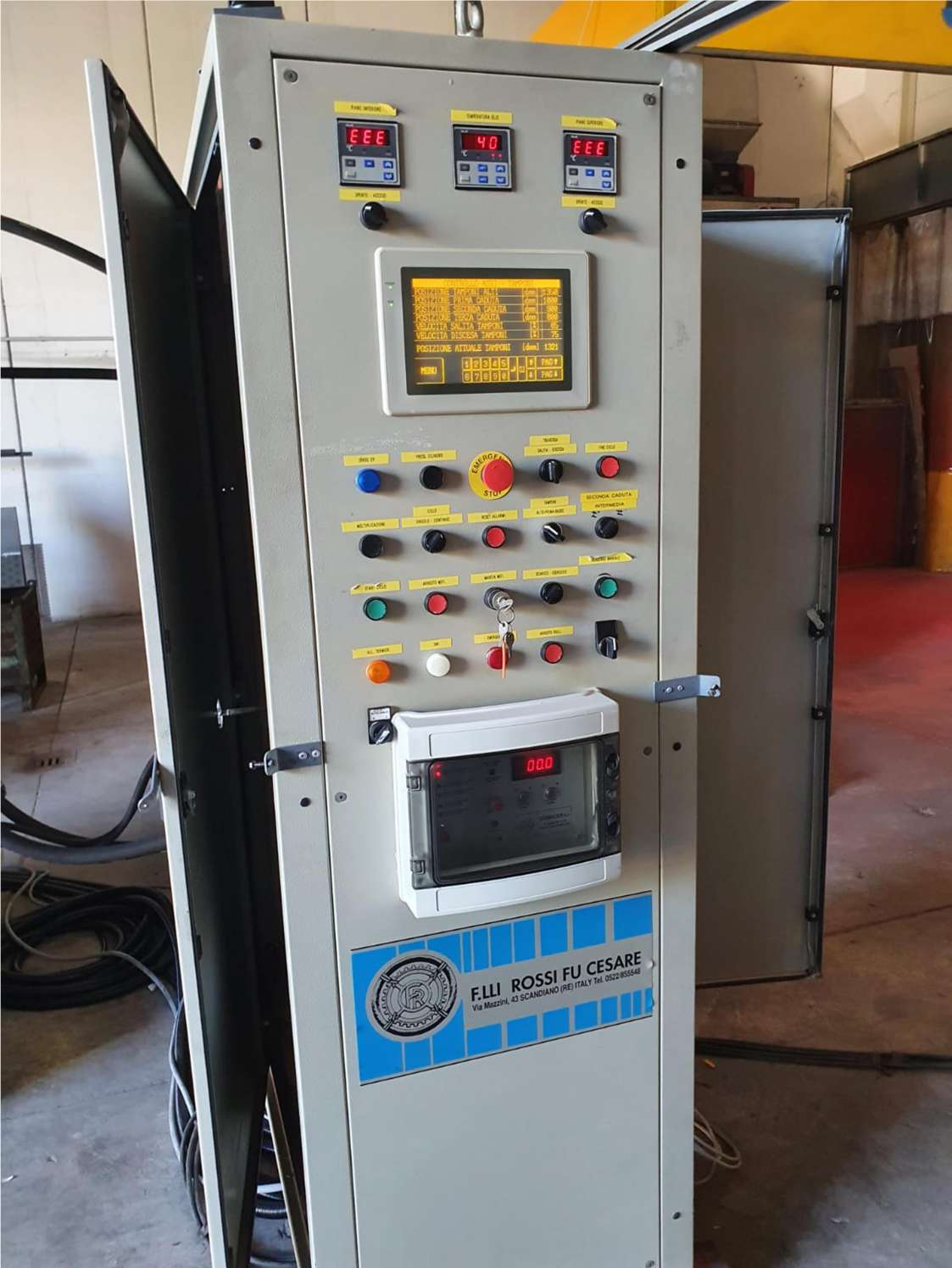

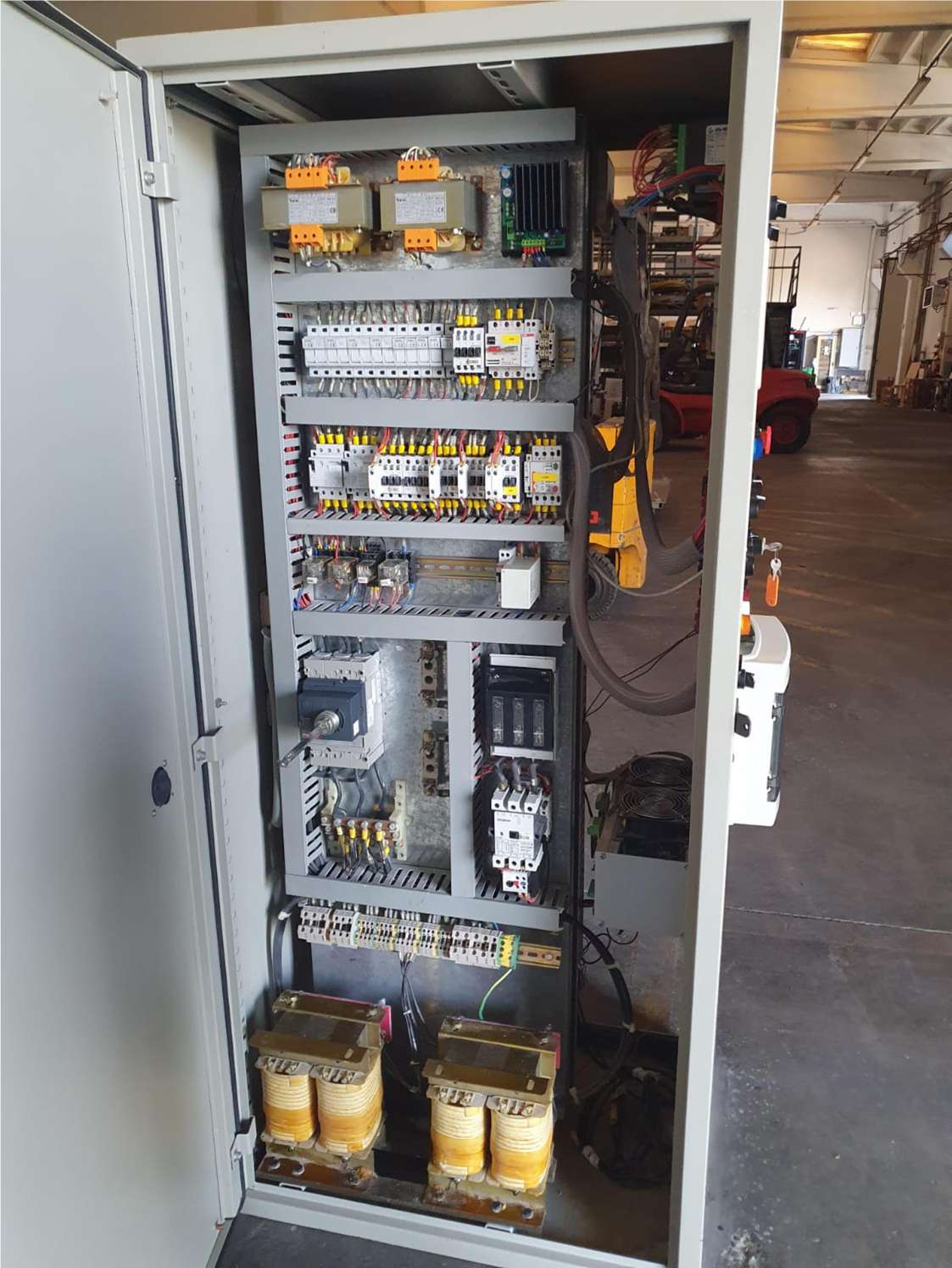

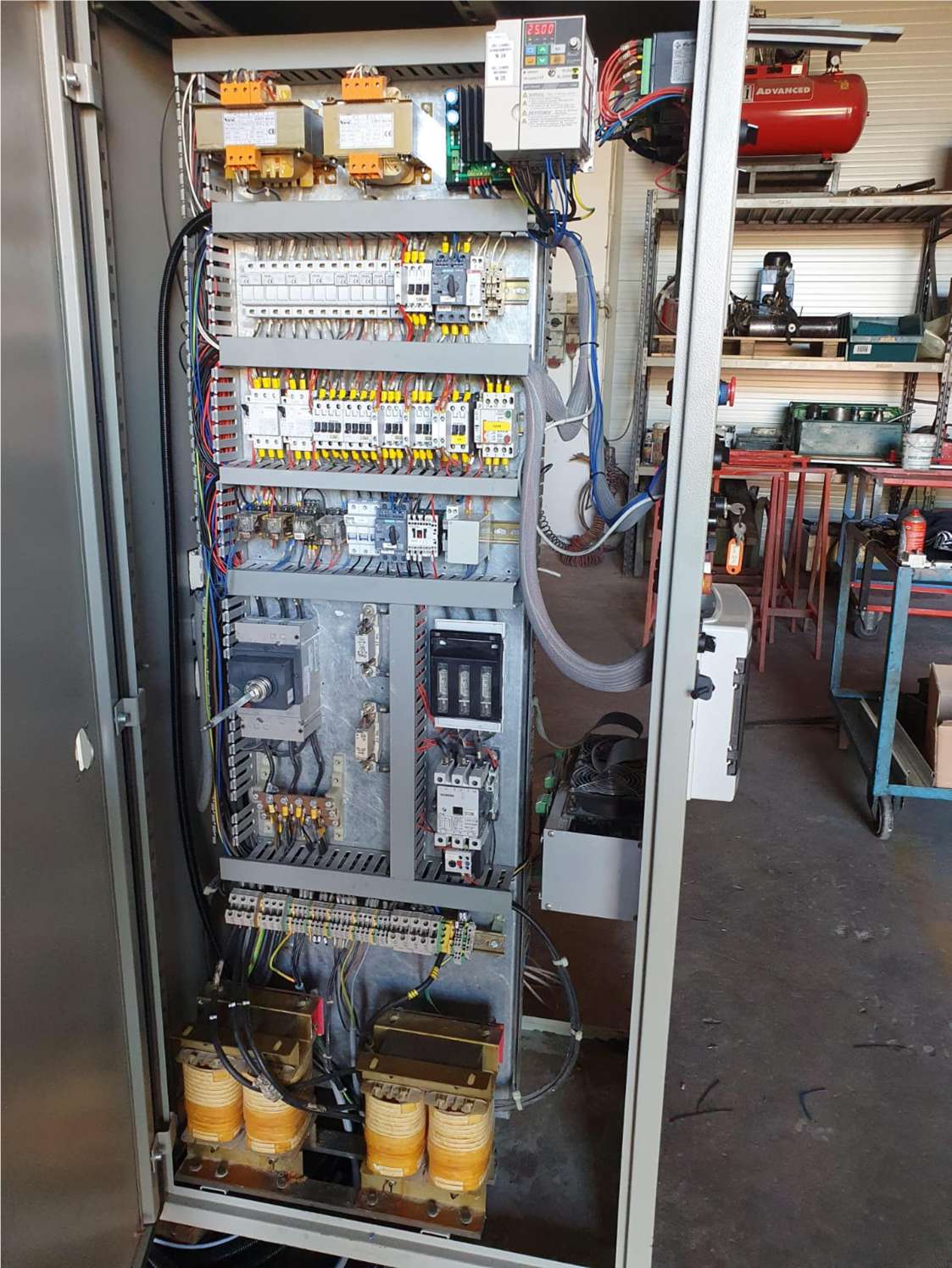

⚡ Electrical System
• Nominal voltage: 220 V
• Control circuits: 28 VDC EV
• Emergency stop: Integrated button
• End of cycle: Automatic signal
